Black 16mm Momentary Starter Push Button Switch 60A 12VDC A2-19A-07-A1
by SCI
SKU 491422
MPN: A2-19A-07-A1
Availability:
20 in stock
Original price
£4.74
-
Original price
£4.74
Original price
£4.74
£4.74
-
£4.74
Current price
£4.74

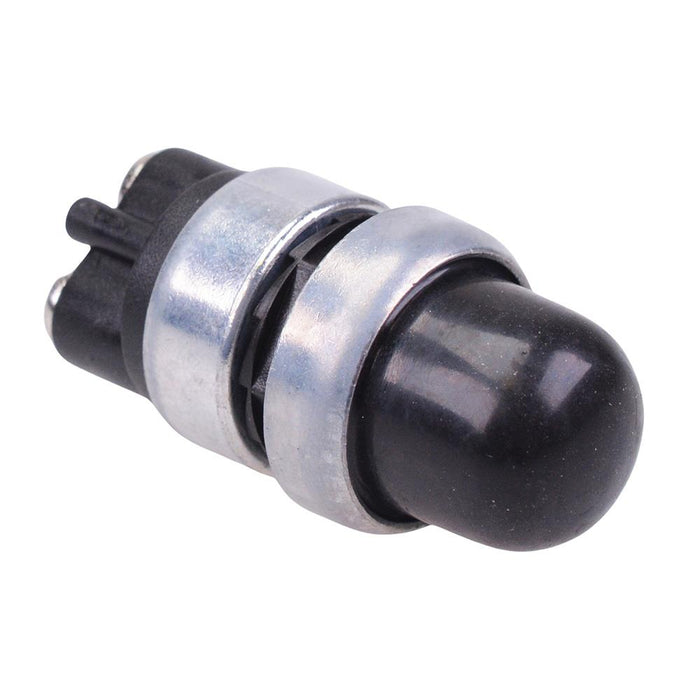

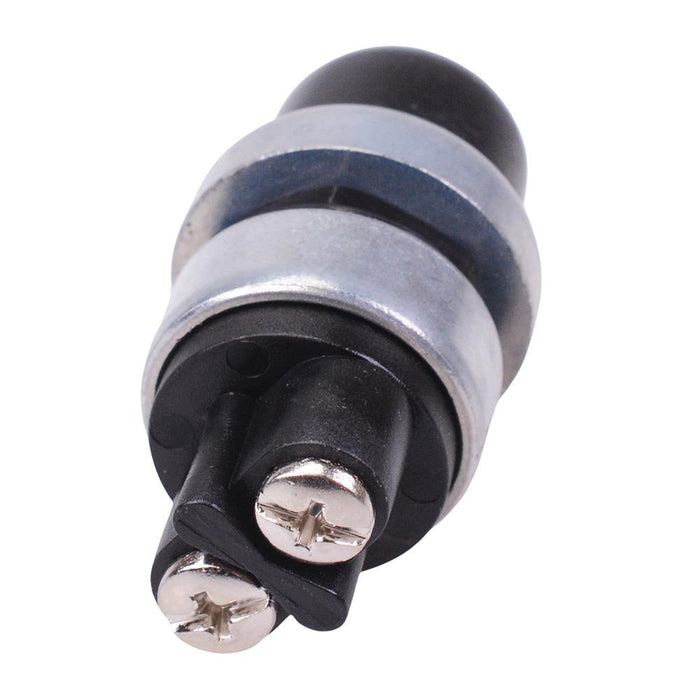

The A2-19A-07-A1 is a starter push button switch featuring M4 screw terminals and 16mm panel cut-out. The switch features a black rubber button and is suitable for 12V automotive applications including cars, bikes and other vehicles.
Off-(On) action SPST contacts M4 screw terminals Panel cut-out diameter: 16mm Rating: 60A 12VDC Maximum panel thickness: 4mm Dimensions: 56.85 x 26.1mm (height x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 150 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Rating | 60A 12VDC |
| Current Rating | 60A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Panel Cut Out | 16mm |
| Panel Thickness | 4mm Max |
| Switch Operation | Off-(On) |
| Terminal Type | Screw |
| Voltage Rating | 12VDC |
