Black 12-Pole Kwik Snap Terminal Block 24A 450V
SKU 482165
MPN: 482165
Availability:
301 in stock
Original price
£0.73
-
Original price
£0.73
Original price
£0.73
£0.73
£0.73
-
£0.73
Current price
£0.73

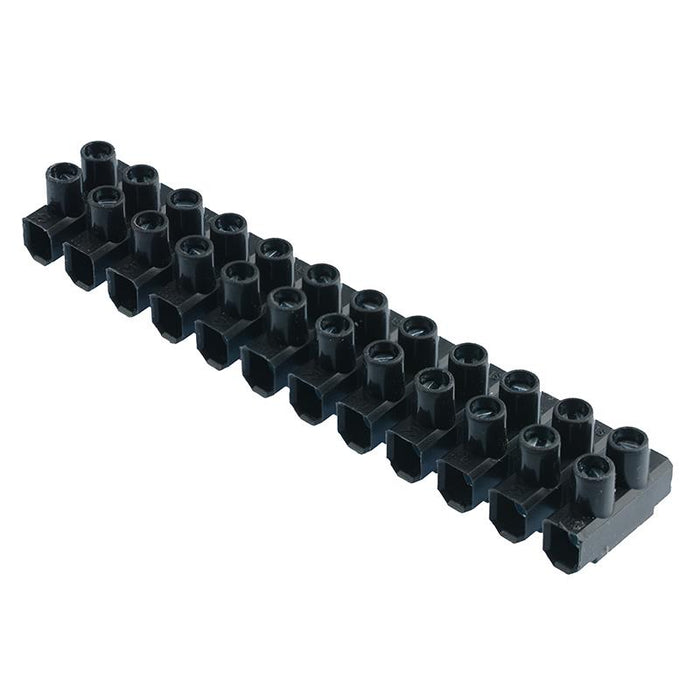

Black 24A 12 pole pillar terminal block featuring Kwik Snap technology allowing the poles to be easily separated without the need for tools. The terminal strips are manufactured from UL94V-2 polypropylene with steel inserts, providing the user a reliable and low cost terminal block assembly solution.
Pitch: 8mm Maximum conductor size: 4mm² Rating: 24A 450V Dimensions: 12.2 x 17.8 x 93.5mm (H x W x L) Zinc plated steel inserts VDE approved and rated to T85-110 Complies with IEC/EN60998-1,60998-2-1
Specification
| Back Order Lead Time | 30 Days |
| Colour | Black |
| Current Rating | 24A |
| Housing Material | Polypropylene |
| Mounting Type | Cable Mount |
| Number of Ways | 12 |
| Pitch | 8mm |
| Termination Method | Screw |
| Voltage Rating | 450VAC |
| Wire Range | 4mm² max |
