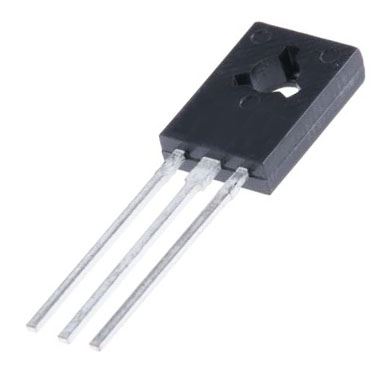

BD679 80V NPN Darlington Power Transistor SOT32

by ST
SKU 551606

MPN: BD679

Availability:
25 in stock
Original price £0.51 - Original price £0.51
Original price
£0.51 Inc VAT
£0.51 - £0.51
Current price £0.51 Inc VAT

The BD679 transistor is a monolithic darlington configuration transistor with integrated antiparallel collector-emitter diode. Used for linear and switching industrial applications and provided in SOT-32 packaging. For further technical specifications please refer to the attached datasheet.

  • NPN Darlington Transistor
  • Good HFE linearity and high ft frequency
  • 80V 4A SOT32
  • Specification
    Back order lead time 5 Days
    Collector base voltage 80V
    Collector current 4A
    Collector emitter saturation voltage 2.5V
    Collector emitter voltage 80V
    Dc current gain 750
    Maximum operating temperature 150°C
    Mounting type Through Hole
    Package SOT32
    Power dissipation 40W
    Type NPN
