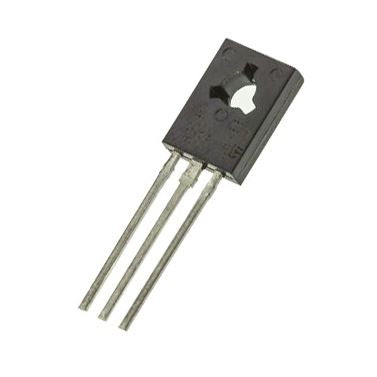

BD136 Bipolar PNP 45V Transistor SOT32

by ST
SKU 480076

MPN: BD136

Availability:
250 in stock
Original price £0.42 - Original price £0.42
Original price
£0.42 Inc VAT
£0.42 - £0.42
Current price £0.42 Inc VAT
The BD136 is a epitaxial planar transistor mounted in a SOT-32 package. Designed for audio amplifiers and drivers utilizing complementary or quasi-complementary circuits.

  • Collector base voltage: -45V
  • Collector emitter voltage: -45V
  • Emitter base voltage: -5V
  • Collector current: -1.5A
  • SOT32 package
  • Specification
    Back order lead time 5 Days
    Collector base voltage 45V
    Collector current 1.5A
    Collector emitter voltage 45V
    Maximum operating temperature 150°C
    Moq 5
    Mounting type Through Hole
    Package SOT32
    Power dissipation 15W
    Transistion frequency 50MHz
    Type PNP
