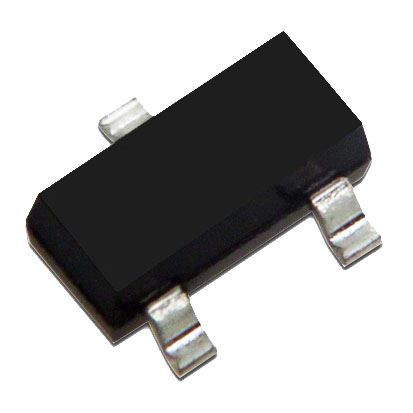

BC848C 30V NPN Small Signal Transistor SOT23
by Diodes Zetex
SKU 551593
MPN: BC848C
Availability:
100 in stock
Original price
£0.20
-
Original price
£0.20
Original price
£0.20
Inc VAT
£0.20
-
£0.20
Current price
£0.20
Inc VAT
The BC848C transistor is an NPN small signal transistor produced in SOT23 casing, ideally suited for automatic insertion. For further technical specifications please refer to the attached datasheet.
Specification
| Back order lead time | 5 Days |
| Collector base voltage | 30V |
| Collector current | 100mA |
| Collector emitter saturation voltage | 600mV |
| Collector emitter voltage | 30V |
| Dc current gain | 420 |
| Maximum operating temperature | 150°C |
| Moq | 5 |
| Mounting type | Surface Mount |
| Package | SOT23 |
| Power dissipation | 300mW |
| Transistion frequency | 300MHz |
| Type | NPN |
