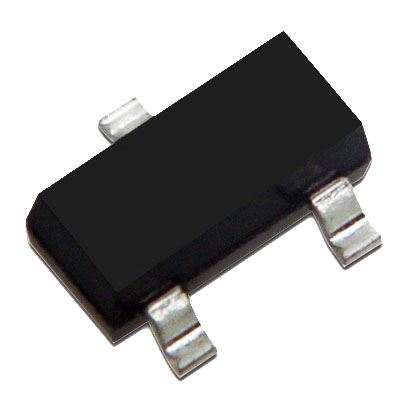

BC807-25 45V Small Signal SMD Transistor SOT23

SKU 551581

MPN: BC807-25

189 in stock
Original price £0.24 - Original price £0.24
Original price
£0.24 Inc VAT
£0.24 - £0.24
Current price £0.24 Inc VAT

The BC807-25 transistor is a small signal SMD transistor. Epitaxial planar die construction and ideally suited for automatic insertion. Used for switching and AF amplifier applications. For further technical specifications please refer to the attached datasheet.

  • Complementary NPN - PNP transistors
  • Suitable for switching and amplifier applications
  • 45V 0.8A SOT23
  • Specification
    Back order lead time 5 Days
    Collector base voltage 50V
    Collector current 500mA
    Collector emitter saturation voltage 700mV
    Collector emitter voltage 45V
    Dc current gain 160
    Maximum operating temperature 150°C
    Moq 5
    Mounting type Surface Mount
    Package SOT23
    Power dissipation 310mW
    Transistion frequency 100MHz
    Type PNP
