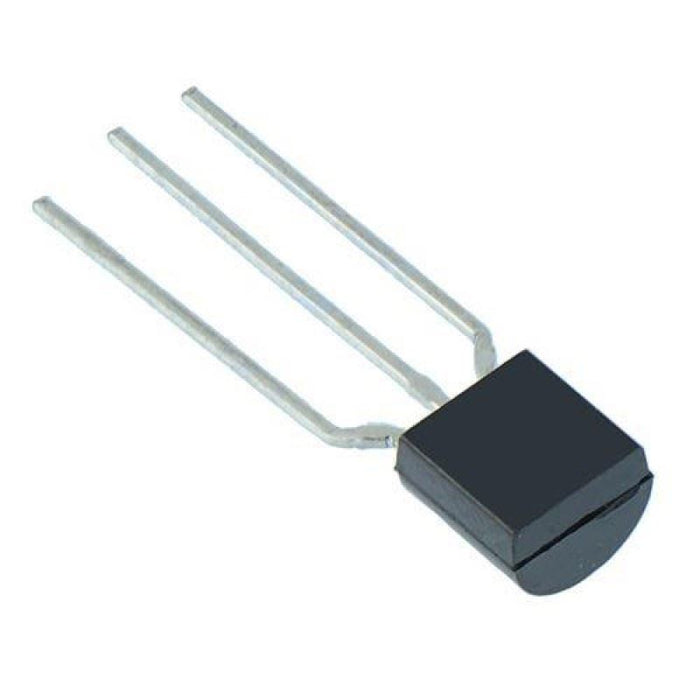

BC639 Bipolar NPN 80V Transistor TO92

by CDIL
SKU 480925

MPN: BC639

Availability:
100 in stock
Original price £0.31 - Original price £0.31
Original price
£0.31 Inc VAT
£0.31 - £0.31
Current price £0.31 Inc VAT
The BC639 is a general purpose medium power bipolar transistor featuring a planar construction and housed in a TO92 package, suitable for low noise general purpose audio applications.

  • NPN polarity
  • Collector emitter voltage: 80V
  • Collector base voltage: 80V
  • Collector current: 1A
  • Power: 1W
  • Transition frequency: 200MHz
  • TO92 package
  • Specification
    Back order lead time 5 Days
    Collector base voltage 80V
    Collector current 1A
    Collector emitter voltage 80V
    Dc current gain 40-250
    Maximum operating temperature 150°C
    Moq 5
    Mounting type Through Hole
    Package TO92
    Power dissipation 0.8/2.75W
    Transistion frequency 200MHz
    Type NPN
