BC549B NPN Bipolar Transistor 30V TO92

by Diotec
SKU 480348

MPN: BC549B

Availability:
641 in stock
Original price £0.14 - Original price £0.14
Original price
£0.14 Inc VAT
£0.14 - £0.14
Current price £0.14 Inc VAT

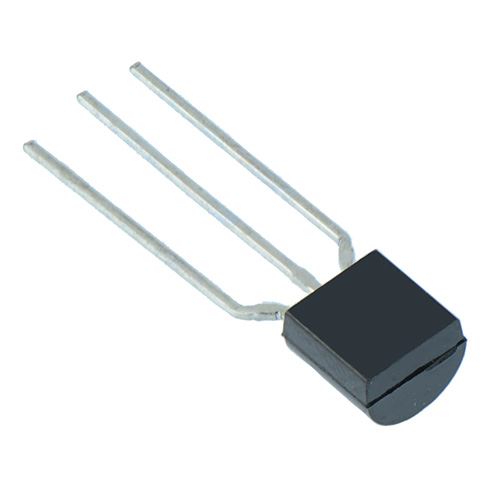

The BC549B is a NPN low power bipolar transistor featuring a TO92 package, suitable for switching and amplifier applications.

  • Collector emitter voltage: 30V
  • Power dissipation: 500mW
  • Package: TO92
  • DC current gain: 200
  • Specification
    Back order lead time 5 Days
    Collector base voltage 30V
    Collector current 100mA
    Collector emitter voltage 30V
    Maximum operating temperature 150°C
    Moq 5
    Mounting type Through Hole
    Package TO92
    Power dissipation 500mW
    Type NPN
