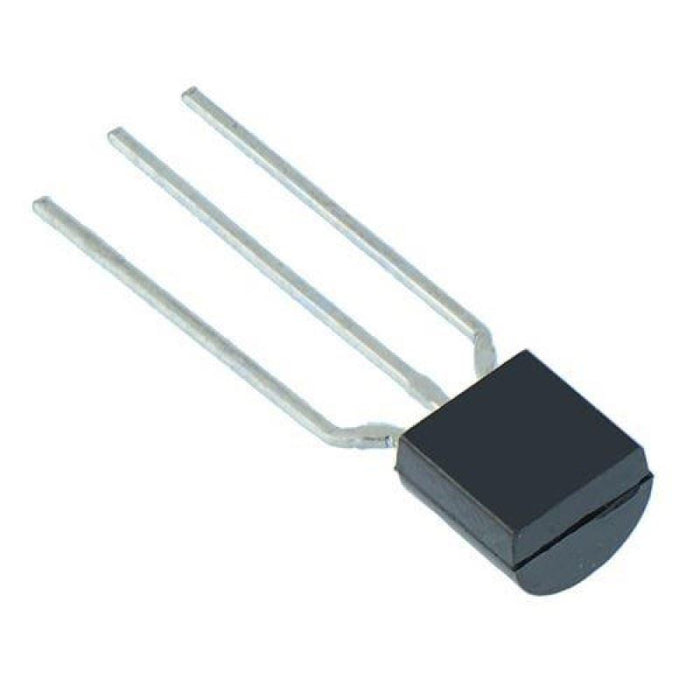

BC214 Bipolar PNP 30V Transistor TO92

by CDIL
SKU 480927

MPN: BC214

Availability:
843 in stock
Original price £0.21 - Original price £0.21
Original price
£0.21 Inc VAT
£0.21 - £0.21
Current price £0.21 Inc VAT
The BC214 is a general purpose medium power bipolar transistor featuring a planar construction and housed in a TO92 package, suitable for low noise general purpose audio applications.

  • PNP polarity
  • Collector emitter voltage: 30V
  • Collector base voltage: 45V
  • Collector current: 100A
  • Power: 1W
  • Transition frequency: 320MHz
  • TO92 package
  • Specification
    Back order lead time 5 Days
    Collector base voltage 45V
    Collector current 100mA
    Collector emitter voltage 30V
    Dc current gain 140
    Maximum operating temperature 150°C
    Moq 5
    Mounting type Through Hole
    Package TO92
    Power dissipation 0.35/1W
    Transistion frequency 320MHz
    Type PNP
