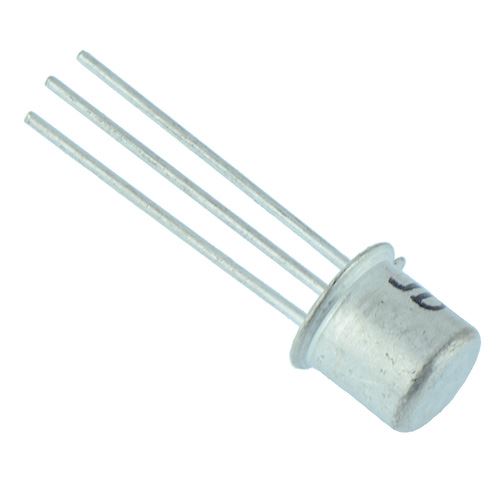

BC179B PNP Bipolar Transistor 20V TO18

by CDIL
SKU 480352

MPN: BC179B

Availability:
99 in stock
Original price £0.83 - Original price £0.83
Original price
£0.83 Inc VAT
£0.83 - £0.83
Current price £0.83 Inc VAT
The BC179B is a general purpose medium power transistor with planar construction, suitable for low noise general purpose audio applications.

  • PNP polarity
  • Collector emitter voltage: 20V
  • Collector base voltage: 25V
  • Collector current: 200mA
  • Power: 0.75W
  • Transition frequency: 200MHz
  • TO18 package
  • Specification
    Back order lead time 5 Days
    Collector base voltage 25V
    Collector current 200mA
    Collector emitter voltage 20V
    Maximum operating temperature 200°C
    Mounting type Through Hole
    Package TO18
    Power dissipation 300mW
    Transistion frequency 200MHz
    Type PNP
