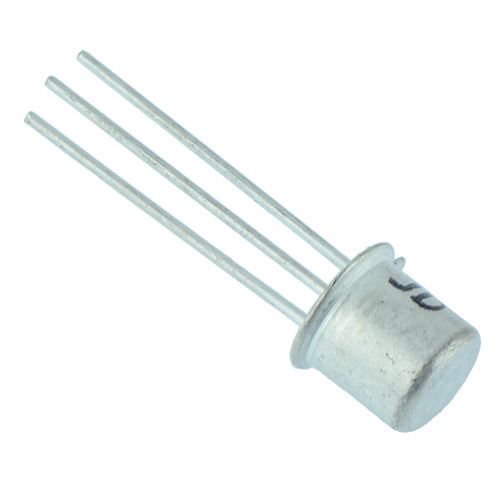

BC109B NPN Bipolar 25V TO18

by CDIL
SKU 480350

MPN: BC109B

Availability:
100 in stock
Original price £0.86 - Original price £0.86
Original price
£0.86 Inc VAT
£0.86 - £0.86
Current price £0.86 Inc VAT
The BC109B is a medium power signal transistor with planar construction, suitable for low noise general purpose audio applications.

  • NPN polarity
  • Collector emitter voltage: 25V
  • Collector base voltage: 30V
  • Collector current: 200mA
  • Power: 0.75W
  • Transition frequency: 150MHz
  • TO18 package
  • Specification
    Back order lead time 5 Days
    Collector base voltage 30V
    Collector current 200mA
    Collector emitter voltage 25V
    Maximum operating temperature 200°C
    Mounting type Through Hole
    Package TO18
    Power dissipation 300mW
    Transistion frequency 150MHz
    Type NPN
