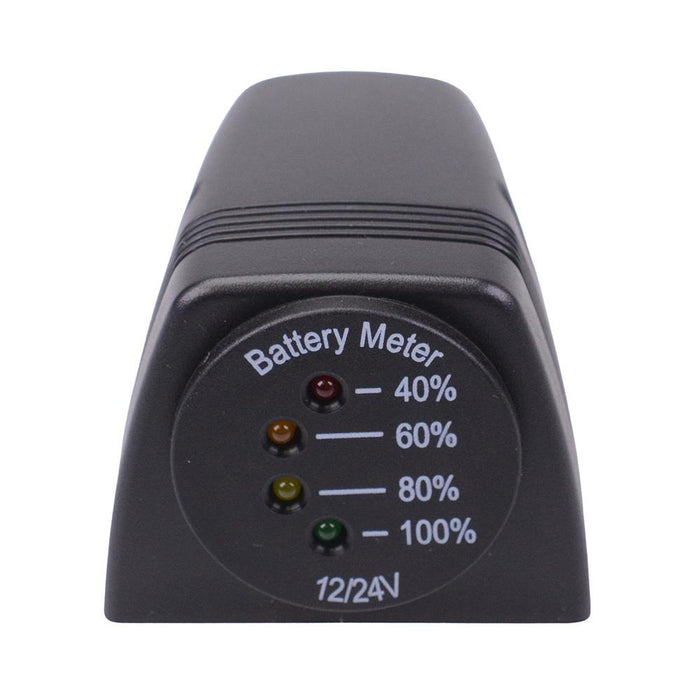

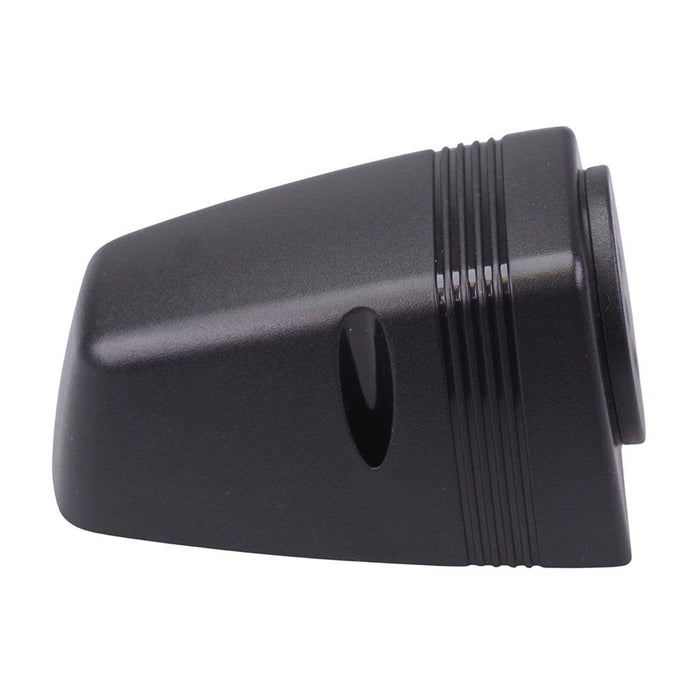

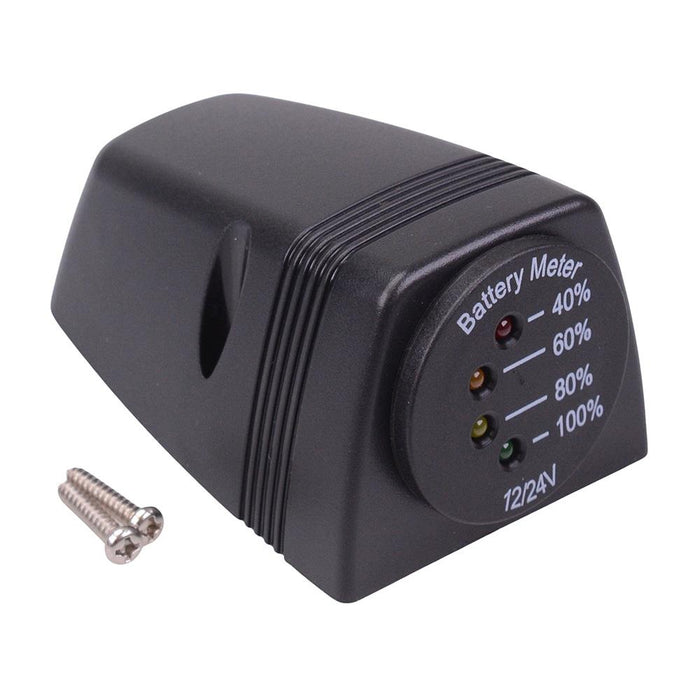

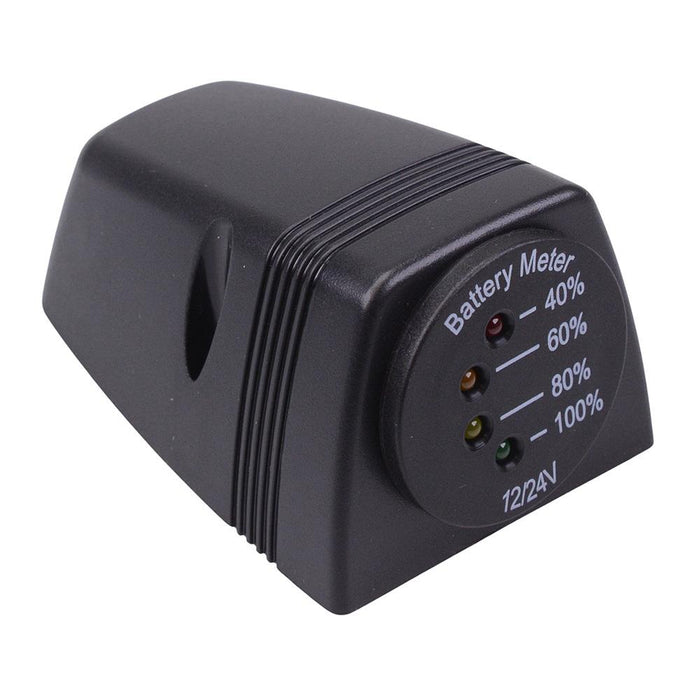

Battery Indicator Meter with Panel Mount Housing 12V/24V A25-4HS-BB3

The A25-4HS-BB3 is a battery voltage meter compatible with both 12V and 24V batteries, complete with a mounting panel. The meter features 4 different colour LED indicators which illuminate depending on the voltage of the battery. The meter features a 7-33VDC input rating and requires a 29mm panel cut-out.

Input voltage: 7-33VDC

4 LEDs indicate battery level (40% red, 60% amber, 80% yellow, 100% green)

6.3mm quick connect terminals

Reverse polarity protection

Comes with mounting panel and screws

Mounting holes pitch: 39mm

Dimensions (including panel): 78.9 x 53.1 x 41.4mm (length x width x height)
