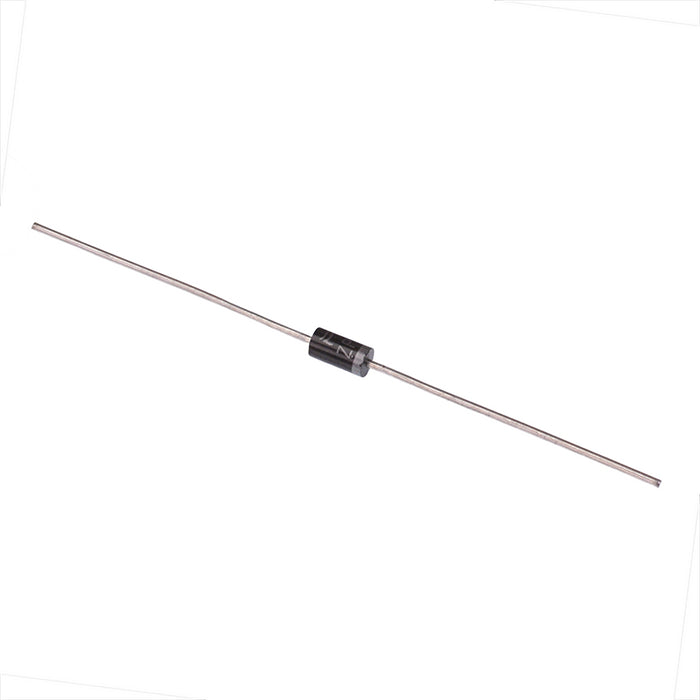

BA159 Rectifier Diode 1A 1000V

by Diotec
SKU 486269

MPN: BA159

Availability:
983 in stock
Original price £0.12 - Original price £0.12
Original price
£0.12 Inc VAT
£0.12 - £0.12
Current price £0.12 Inc VAT
The BA159 is a standard recovery rectifier diode featuring high forward surge current and voltage drop. The diode is suitable for rectification of medium frequencies and commercial applications.

  • DO-41 package
  • Repetitive peak reverse voltage: 1000V
  • Maximum average forward rectified current: 1A
  • Peak forward surge current: 40A
  • Specification
    Average rectified current 1A
    Back order lead time 5 Days
    Body dimensions 5.1 x 2.6mm (Length x Diameter)
    Lead dimensions 0.77mm
    Moq 10
    Mounting style Through Hole
    Operating temperature -50°C to 150°C
    Package DO-41
    Packaging Tape
    Peak reverse voltage 1000V
    Peak surge current 40A
