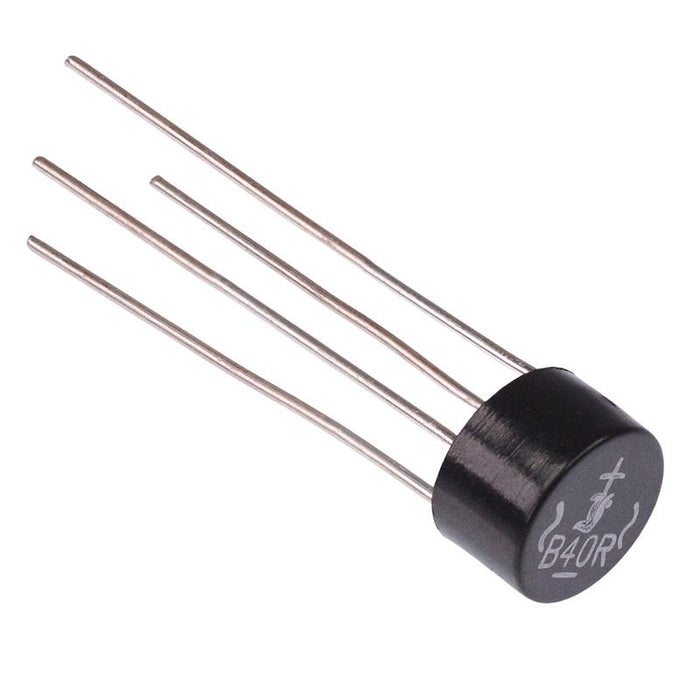

B40R Bridge Rectifier Diode 2A 80V

by Diotec
SKU 486261


231 in stock
Original price £0.41 - Original price £0.41
Original price
£0.41 Inc VAT
£0.41 - £0.41
Current price £0.41 Inc VAT
B40R bridge rectifier diode housed in a flame retardant WOG package featuring a low forward voltage drop suitable for applications including mains rectification, power supplies and commercial uses.

  • 2A maximum rectified output current
  • 80V repetitive peak reverse voltage
  • 10A repetitive peak forward current
  • Dimensions: 9.0 x 5.1mm (diameter x height)
  • Specification
    Average rectified current 2A
    Back order lead time 5 Days
    Body dimensions 9.0 x 5.1mm (Diameter x Height)
    Forward continuous current 2A
    Lead dimensions 0.8mm
    Mounting style Through Hole
    Operating temperature -50°C to 150°C
    Package WOG
    Packaging Bulk
    Peak reverse voltage 80V
    Peak surge current 50A
