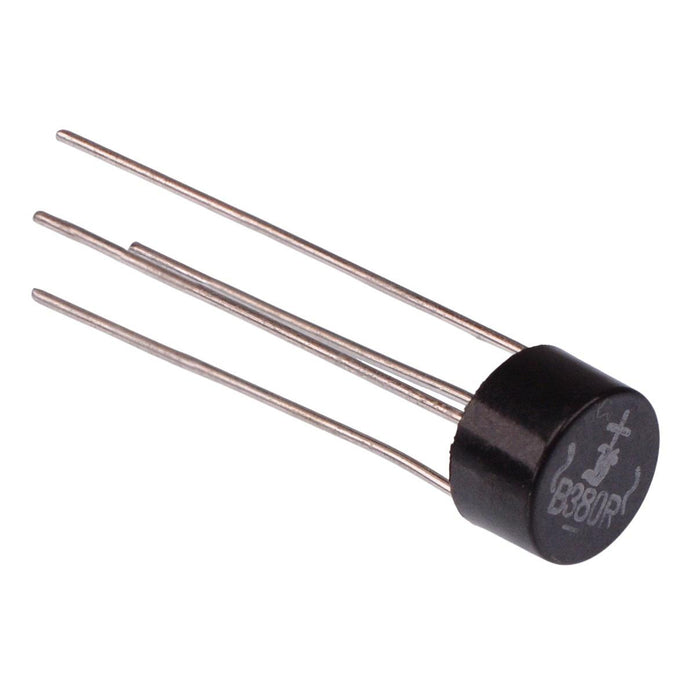

B380R Bridge Rectifier Diode 2A 800V

by Diotec
SKU 486259

MPN: B380R

Availability:
246 in stock
Original price £0.33 - Original price £0.33
Original price
£0.33
£0.33 - £0.33
Current price £0.33
B380R bridge rectifier diode housed in a flame retardant WOG package featuring a low forward voltage drop suitable for applications including mains rectification, power supplies and commercial uses.

  • 2A maximum rectified output current
  • 800V repetitive peak reverse voltage
  • 10A repetitive peak forward current
  • Dimensions: 9.0 x 5.1mm (diameter x height)
  • Specification
    Average Rectified Current 2A
    Back Order Lead Time 5 Days
    Body Dimensions 9.0 x 5.1mm (Diameter x Height)
    Forward Continuous Current 2A
    Lead Dimensions 0.8mm
    Mounting Style Through Hole
    Operating Temperature -50°C to 150°C
    Package WOG
    Packaging Bulk
    Peak Reverse Voltage 800V
    Peak Surge Current 50A
