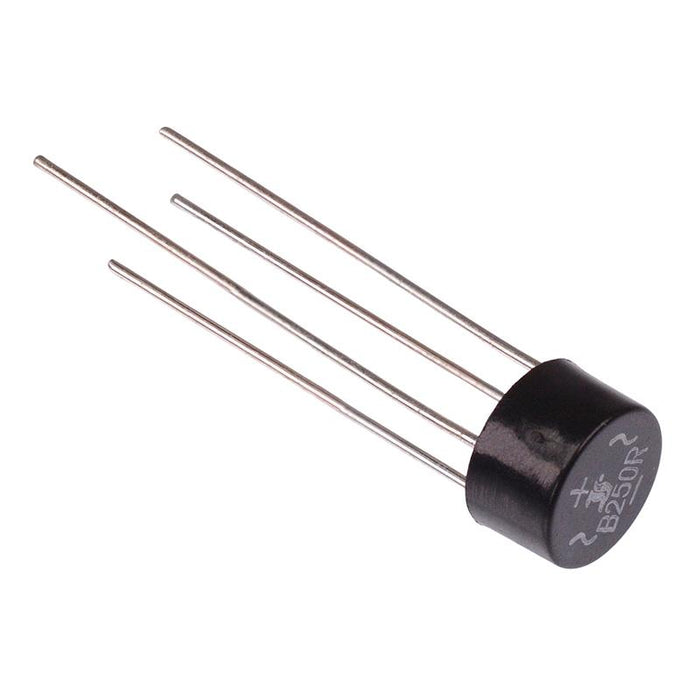

B250R Bridge Rectifier Diode 2A 600V

by Diotec
SKU 486257

MPN: B250R

Availability:
250 in stock
Original price £0
Original price £0.35 - Original price £0.35
Original price
Current price £0.35(inc. VAT)
£0.35 - £0.35
Current price £0.35
 More payment options
B250R bridge rectifier diode housed in a flame retardant WOG package featuring a low forward voltage drop suitable for applications including mains rectification, power supplies and commercial uses.

  • 2A maximum rectified output current
  • 600V repetitive peak reverse voltage
  • 10A repetitive peak forward current
  • Dimensions: 9.0 x 5.1mm (diameter x height)
  • Specification
    Average Rectified Current 2A
    Back Order Lead Time 5 Days
    Body Dimensions 9.0 x 5.1mm (Diameter x Height)
    Forward Continuous Current 2A
    Lead Dimensions 0.8mm
    Mounting Style Through Hole
    Operating Temperature -50°C to 150°C
    Package WOG
    Packaging Bulk
    Peak Reverse Voltage 600V
    Peak Surge Current 50A
