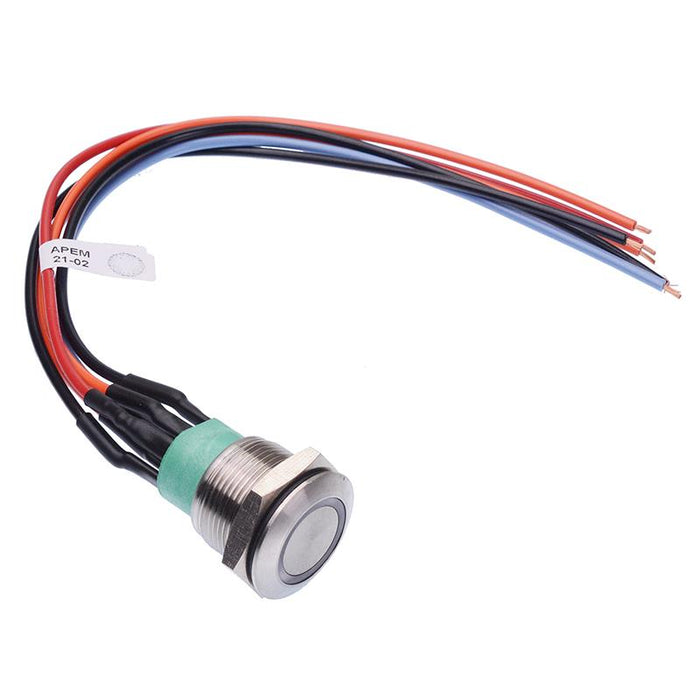

AV9V12F1020840K APEM Momentary 19mm Green 12V LED illuminated Vandal Push Button Switch IP67

by APEM
SKU 485989

MPN: AV9V12F1020840K

Availability:
10 in stock
Original price £34.45 - Original price £34.45
Original price
£34.45 Inc VAT
£34.45 - £34.45
Current price £34.45 Inc VAT
The AV9V12F1020840K is a security vandal resistant push button switch with green illuminated ring and momentary NO/NC contacts. The switch features a stainless steel bushing sealed to IP67, suitable for applications requiring a reliable and durable switch over a long lifespan.

  • Momentary NO/NC contacts
  • Green illuminated ring LED
  • 12V illumination voltage
  • Flat actuator
  • Long life
  • 20cm flying leads
  • Stainless steel brushing
  • IP67 protection level
  • Panel cut-out: 19.2mm
  • Rating: 1A 30VDC
  • Panel thickness: 1-6mm
  • Dimensions: 25.9 x 22mm (length x diameter)
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Contact configuration SPDT
    Contact rating 1A 30VDC
    Current rating 1A
    Electrical life 250,000 Cycles
    Illuminated No
    Illumination colour Non Illuminated
    Material Stainless Steel
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating force 5N
    Operating temperature -30°C to +85°C
    Panel cut out 19.2mm
    Panel thickness 1-6mm
    Product series AV
    Protection level IP67
    Terminal type Wires
    Voltage rating 30VDC
