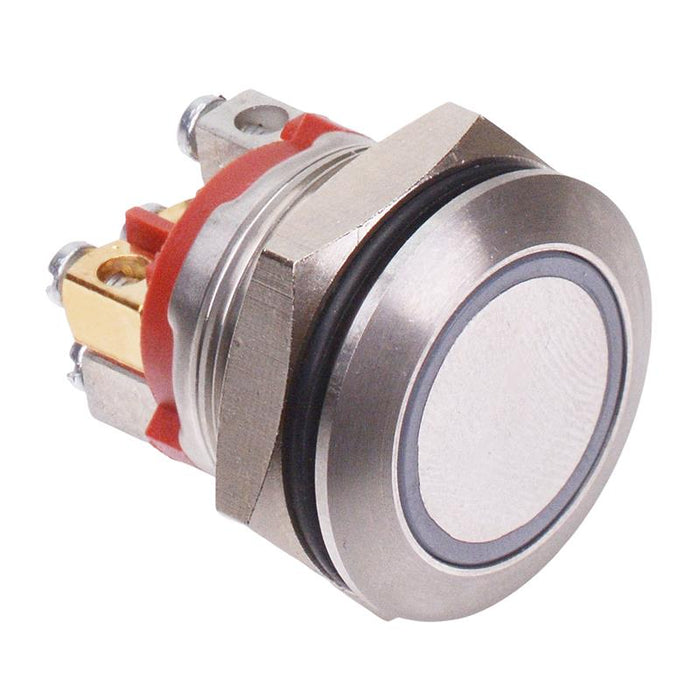

AV9SLD9486002K APEM Momentary 19mm Red LED illuminated Vandal Push Button Switch IP67
by APEM
SKU 485988
MPN: AV9SLD9486002K
Availability:
Only 4 left!
Original price
£54.77
-
Original price
£54.77
Original price
£54.77
Inc VAT
£54.77
-
£54.77
Current price
£54.77
Inc VAT
The AV9SLD9486002K is a security vandal resistant push button switch with illuminated ring and momentary NO/NC contacts. The switch features a stainless steel bushing sealed to IP67, suitable for applications requiring a reliable and durable switch over a long lifespan.
Momentary NO/NC contacts Flat actuator Long life Screw terminals Gold plated contacts Stainless steel brushing IP67 protection level Panel cut-out: 19.2mm Rating: 50mA 24VDC Panel thickness: 1-6mm Dimensions: 27.1 x 22mm (length x diameter)
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Contact configuration | SPDT |
| Contact rating | 0.05A 24VDC |
| Current rating | 0.05A |
| Electrical life | 1,000,000 Cycles |
| Illuminated | No |
| Illumination colour | Non Illuminated |
| Material | Stainless Steel |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating force | 7N |
| Operating temperature | -30°C to +70°C |
| Panel cut out | 19.2mm |
| Panel thickness | 1-6mm |
| Product series | AV |
| Protection level | IP67 |
| Terminal type | Screw |
| Voltage rating | 24VDC |
