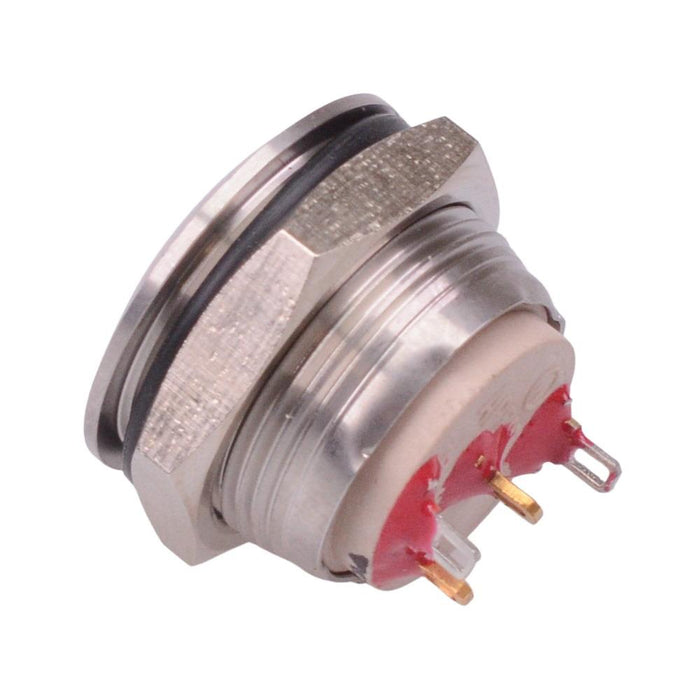

AV9SLD2482010K APEM Momentary 19mm Red/Green LED illuminated Vandal Push Button Switch IP67
by APEM
SKU 489931
MPN: AV9SLD2482010K
Availability:
80 in stock
Original price
£55.44
-
Original price
£55.44
Original price
£55.44
Inc VAT
£55.44
-
£55.44
Current price
£55.44
Inc VAT
The AV9SLD2482010K is a security vandal resistant push button switch with illuminated ring and momentary NO/NC contacts. The switch features a stainless steel bushing sealed to IP67, suitable for applications requiring a reliable and durable switch over a long lifespan.
Momentary NO/NC contacts Red / green LED illumination LED voltage: red 1.95V, green 4V Flat actuator with Cancel symbol Long life Solder terminals Gold plated contacts Stainless steel brushing IP67 protection level Panel cut-out: 19.2mm Rating: 50mA 24VDC Panel thickness: 1-6mm Dimensions: 18.0 x 22.0mm (length x diameter)
Specification
| Actuation | Momentary |
| Colour | Red / Green |
| Contact configuration | SPST |
| Contact material | Gold Plated |
| Contact rating | 50mA 24VDC |
| Current rating | 0.05A |
| Electrical life | 1,000,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Red / Green |
| Illumination voltage | Red 1.95V, Green 4V |
| Material | Stainless Steel |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -30°C to +70°C |
| Panel cut out | 19.2mm |
| Panel thickness | 1-6mm |
| Product series | AV |
| Protection level | IP67 |
| Switch operation | Off-(On) |
| Terminal type | Solder |
| Voltage rating | 24VDC |
