AV5522F102074BK APEM Yellow LED 12VDC Momentary 30mm Push Button Vandal Switch NO/NC IP67
by APEM
SKU 489927
MPN: AV5522F102074BK
Availability:
33 in stock
Original price
£50.20
-
Original price
£50.20
Original price
£50.20
Inc VAT
£50.20
-
£50.20
Current price
£50.20
Inc VAT

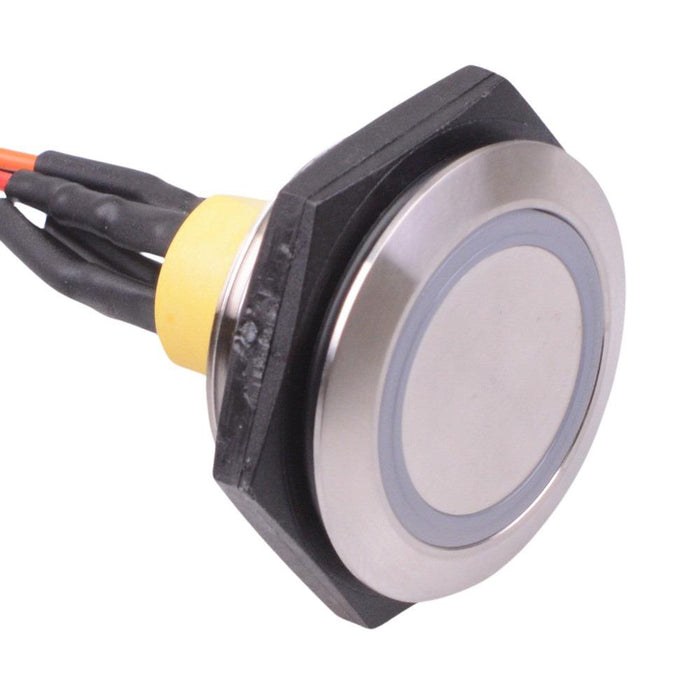

The AV5512F102074BK is an illuminated prewired security vandal resistant 30mm push button switch with momentary NO/NC contacts and large actuator. The switch features a stainless steel bushing sealed to IP67, suitable for applications requiring a reliable and durable switch over a long lifespan.
Momentary NO/NC contacts Yellow 12V LED Flat actuator Long life 20cm flying leads Silver contacts Stainless steel brushing IP67 protection level Panel cut-out: 30.2mm Rating: 1A 30VDC Panel thickness: 1-6mm Dimensions: 36.2 x 34mm (length x diameter)
Specification
| Actuation | Momentary |
| Colour | Yellow |
| Contact configuration | NO/NC |
| Contact material | Silver |
| Contact rating | 1A 30VDC |
| Current rating | 1A |
| Electrical life | 250,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Yellow |
| Illumination voltage | 12VDC |
| Material | Stainless Steel |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -30°C to +85°C |
| Panel cut out | 30.2mm |
| Panel thickness | 1-6mm |
| Product series | AV |
| Protection level | IP65 |
| Switch operation | On-(On) |
| Terminal type | Flying Leads |
| Voltage rating | 30VDC |
