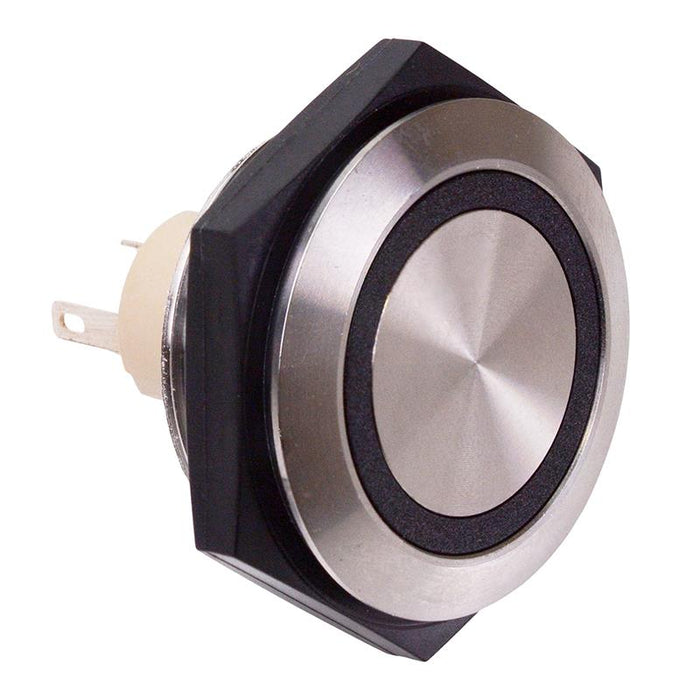

AV50022000024BK APEM Momentary 30mm Push Button Vandal Switch NO/NC IP67 1A 30VDC
by APEM
SKU 485987
MPN: AV50022000024BK
Availability:
Only 5 left!
Original price
£61.90
-
Original price
£61.90
Original price
£61.90
Inc VAT
£61.90
-
£61.90
Current price
£61.90
Inc VAT
The AV50022000024BK is a security vandal resistant 30mm push button switch with momentary NO/NC contacts and large actuator. The switch features a stainless steel bushing sealed to IP67, suitable for applications requiring a reliable and durable switch over a long lifespan.
Momentary NO/NC contacts Flat actuator Long life Solder / quick connect terminals Silver contacts Stainless steel brushing IP67 protection level Panel cut-out: 30.2mm Rating: 1A 30VDC Panel thickness: 1-6mm Dimensions: 34.5 x 36mm (length x diameter)
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Contact configuration | SPDT |
| Contact rating | 1A 30VDC |
| Current rating | 1A |
| Electrical life | 250,000 Cycles |
| Illuminated | No |
| Illumination colour | Non Illuminated |
| Material | Stainless Steel |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating force | 5N |
| Operating temperature | -30°C to +85°C |
| Panel cut out | 30.2mm |
| Panel thickness | 1-6mm |
| Product series | AV |
| Protection level | IP67 |
| Terminal type | Quick Connect |
| Voltage rating | 30VDC |
