AV3V22F202084BK APEM Green LED 24VDC Momentary NO/NC Push Button Vandal Switch IP67
by APEM
SKU 489924
MPN: AV3V22F202084BK
Availability:
6 in stock
Original price
£48.71
-
Original price
£48.71
Original price
£48.71
Inc VAT
£48.71
-
£48.71
Current price
£48.71
Inc VAT

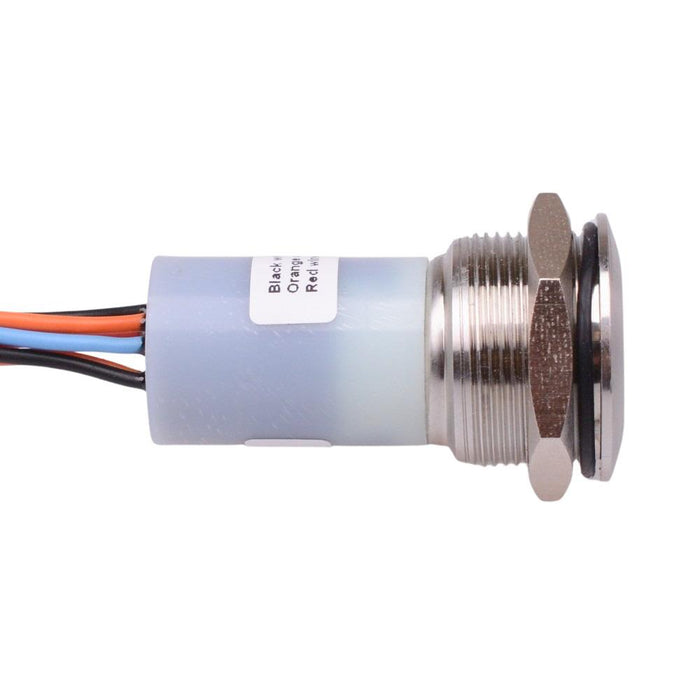

The AV3V22F202084BK is an illuminated prewired security vandal resistant 19mm push button switch with momentary NO/NC contacts and green LED. The switch features a stainless steel bushing sealed to IP67, suitable for applications requiring a reliable and durable switch over a long lifespan.
Momentary NO/NC contacts Green 24V LED Long life 20cm flying leads Silver contacts Stainless steel brushing IP67 protection level Panel cut-out: 19.2mm Rating: 1A 30VDC Panel thickness: 1-6mm Diameter: 22mm
Specification
| Actuation | Momentary |
| Colour | Green |
| Contact configuration | NO/NC |
| Contact material | Silver |
| Contact rating | 1A 30VDC |
| Current rating | 1A |
| Electrical life | 250,000 Cycles |
| Illuminated | Yes |
| Illumination voltage | 24VDC |
| Material | Stainless Steel |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -30°C to +85°C |
| Panel cut out | 19.2mm |
| Panel thickness | 1-6mm |
| Product series | AV |
| Protection level | IP67 |
| Switch operation | On-(On) |
| Terminal type | Flying Leads |
| Voltage rating | 30VDC |
