AV22PNA54 APEM Gold Mushroom 22mm Security Push Button Switch SPST
by APEM
SKU 489923
MPN: AV22PNA54
Availability:
Only 5 left!
Original price
£43.86
-
Original price
£43.86
Original price
£43.86
Inc VAT
£43.86
-
£43.86
Current price
£43.86
Inc VAT

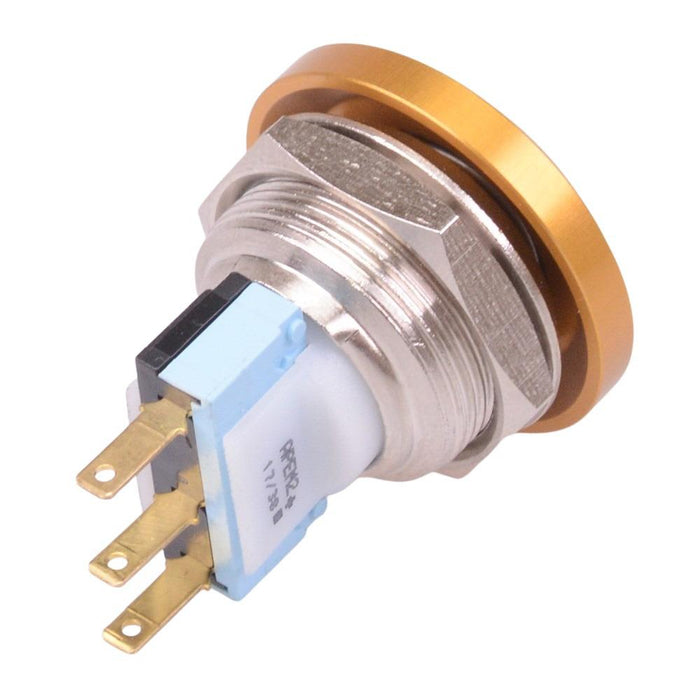

The AV22PNA54 is a gold anodized mushroom head push button switch featuring combined NO and NC contacts and momentary operation. The switch features a 22mm bushing and is sealed to IP65 making it suitable for a wide range of applications. The switch features quick connect terminals and 5A 250VAC rating making it ideal for applications requiring an attractive, robust and durable switch.
Large 30mm mushroom head Combined NO/NC contacts Gold anodized actuator Long life Sealed to IP65 Rating: 5A 250VAC Panel cut-out: 22.2mm Panel thickness: 1-6mm Quick connect 2.80.5mm terminals Dimensions: 35.8 x 30mm (height x diameter)
Specification
| Actuation | Momentary |
| Colour | Gold |
| Contact configuration | NO/NC |
| Contact material | Silver/Nickel Alloy |
| Contact rating | 5A 250VAC |
| Current rating | 5A |
| Electrical life | 1,000,000 Cycles |
| Illuminated | No |
| Material | Nickel Plated Brass |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -20°C to +55°C |
| Panel cut out | 22.2mm |
| Panel thickness | 1-6mm |
| Product series | AV |
| Protection level | IP65 |
| Switch operation | On-(On) |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
