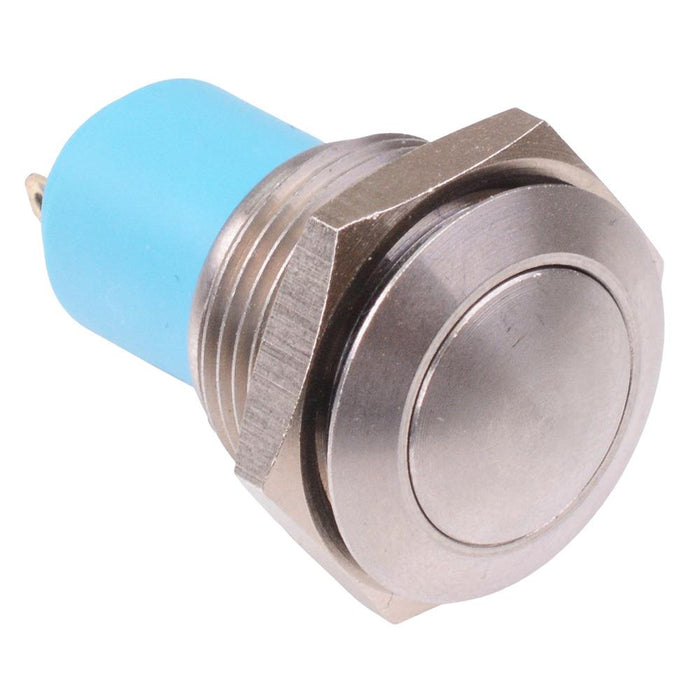

AV1611A240K APEM On-Off 16mm Latching Anti Vandal Push Button Switch SPST IP65
by APEM
SKU 487410
MPN: AV1611A240K
Availability:
56 in stock
Original price
£16.64
-
Original price
£16.64
Original price
£16.64
£16.64
-
£16.64
Current price
£16.64
The AV1611A240K is a latching anti vandal push button switch by APEM featuring a stainless steel body and 16mm bushing. The switch features SPST contacts and curved actuator suitable for a wide range of applications.
SPST contacts On-Off function Panel cut-out: 16.2mm Panel thickness: 1-6mm Solder terminals Stainless steel body Curved actuator IP65 protection level Rating: 1A 24VDC
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPST |
| Contact Rating | 1A 24VDC |
| Current Rating | 1A |
| Electrical Life | 40,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Material | Stainless Steel |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to +70°C |
| Panel Cut Out | 16.2mm |
| Panel Thickness | 1-6mm |
| Product Series | AV |
| Protection Level | IP65 |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 24VDC |
