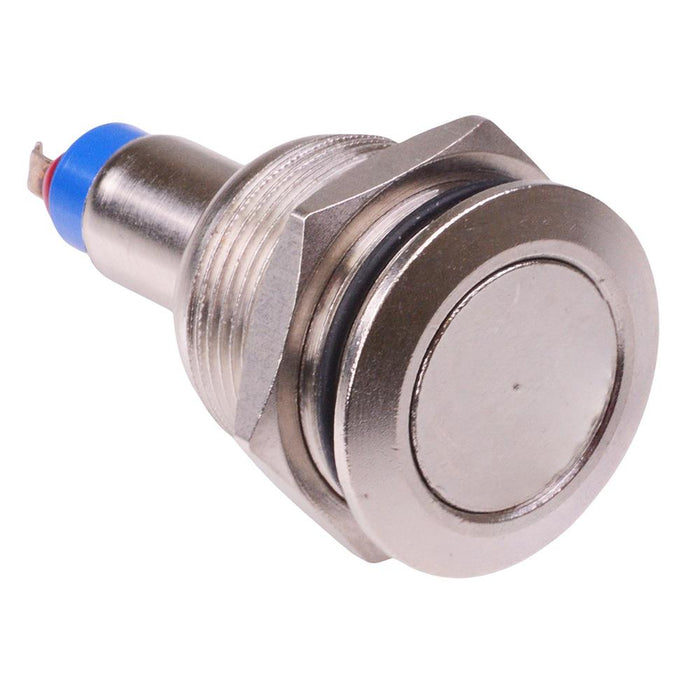

AV09401ZQEK APEM On-Off Latching 19mm Anti Vandal Push Button Switch SPST
by APEM
SKU 487287
MPN: AV09401ZQEK
Availability:
95 in stock
Original price
£19.23
-
Original price
£19.23
Original price
£19.23
£19.23
-
£19.23
Current price
£19.23
The AV09401ZQEK is a 19mm latching anti vandal push button switch featuring SPST contacts and solder terminals. The switch is sealed to IP65 and is suitable for a wide range of applications.
On-Off function SPST contacts Chrome body Panel cut-out: 19.2mm Protection level: IP65 Solder terminals Rating: 2A 48VDC Dimensions: 42 x 22mm (length x diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPST |
| Contact Rating | 2A 48VDC |
| Current Rating | 2A |
| Illuminated | No |
| Material | Stainless Steel |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to +70°C |
| Panel Cut Out | 19.2mm |
| Panel Thickness | 1-11mm |
| Product Series | AV |
| Protection Level | IP65 |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 48VDC |
