AV091L5EA200 APEM Yellow illuminated 19mm Latching Security Push Button Switch SPST
by APEM
SKU 489915
MPN: AV091L5EA200
Availability:
72 in stock
Original price
£25.64
-
Original price
£25.64
Original price
£25.64
Inc VAT
£25.64
-
£25.64
Current price
£25.64
Inc VAT

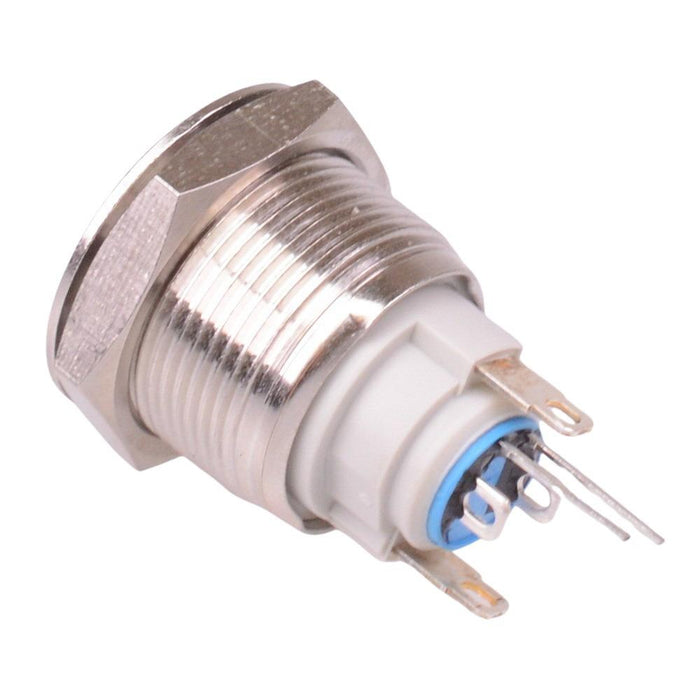

The AV091L5EA200 is a illuminated security vandal resistant push button switch featuring latching function and solder lug terminals. The switch features a long life and nickel plated brass bushing, suitable for applications requiring a reliable and durable switch.
2NO/2NC contacts Flat actuator Long life Solder lug terminals Silver contacts Nickel plated brass brushing Panel cut-out: 19.2mm Rating: 2A 48VDC Panel thickness: 1-9mm Diameter: 22mm
Specification
| Actuation | Momentary |
| Colour | Yellow |
| Contact configuration | 2NO/2NC |
| Contact material | Silver |
| Contact rating | 2A 48VDC |
| Current rating | 2A |
| Electrical life | 500,000 Cycles |
| Illuminated | Yes |
| Material | Nickel Plated Brass |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 2 |
| Operating temperature | -30°C to +70°C |
| Panel cut out | 19.2mm |
| Panel thickness | 1-9mm |
| Product series | AV |
| Switch operation | On-(On) |
| Terminal type | Solder |
| Voltage rating | 48VDC |
