AV091003C940K APEM Momentary 19mm Push Button Vandal Switch SPST IP65 2A 48VDC

by APEM
SKU 485986

MPN: AV091003C940K

Availability:
67 in stock
Original price £17.61 - Original price £17.61
Original price
£17.61 Inc VAT
£17.61 - £17.61
Current price £17.61 Inc VAT

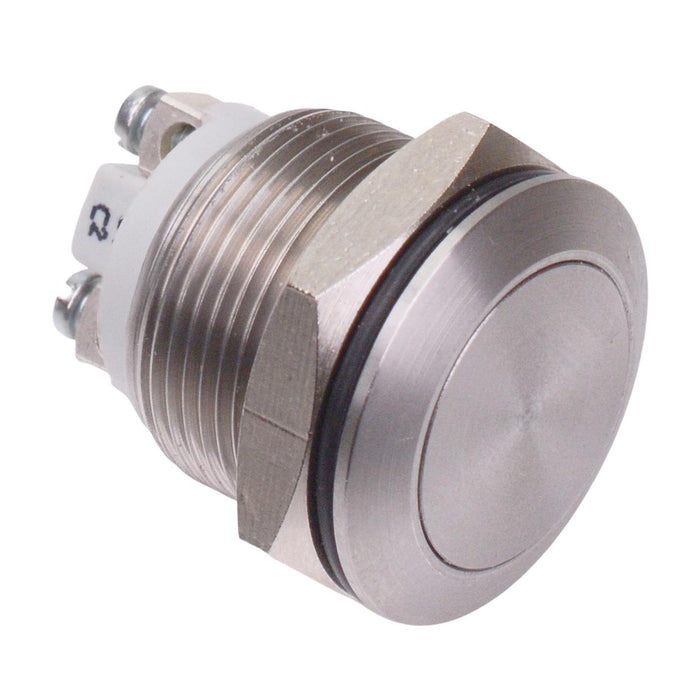

The AV091003C940K is a security vandal resistant push button switch featuring NO momentary contacts and screw terminals. The switch features a stainless steel bushing sealed to IP65, suitable for applications requiring a reliable and durable switch over a long lifespan.

  • NO SPST contacts
  • Flat actuator
  • Long life
  • Screw terminals
  • Silver plated brass contacts
  • Stainless steel brushing
  • IP65 protection level
  • Panel cut-out: 19.2mm
  • Rating: 2A 48VDC
  • Panel thickness: 1-11mm
  • Dimensions: 26 x 22mm (length x diameter)
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Contact configuration SPST
    Contact rating 2A 48VDC
    Current rating 2A
    Illuminated No
    Illumination colour Non Illuminated
    Material Stainless Steel
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating force 5N
    Operating temperature -30°C to +70°C
    Panel cut out 19.2mm
    Panel thickness 1-11mm
    Product series AV
    Protection level IP65
    Switch operation Off-(On)
    Terminal type Screw
    Voltage rating 48VDC
