AV03C7L3D2403E APEM Green LED Momentary 22mm Tactile Security Push Button Switch NO
by APEM
SKU 489911
MPN: AV03C7L3D2403E
Availability:
46 in stock
Original price
£31.74
-
Original price
£31.74
Original price
£31.74
Inc VAT
£31.74
-
£31.74
Current price
£31.74
Inc VAT

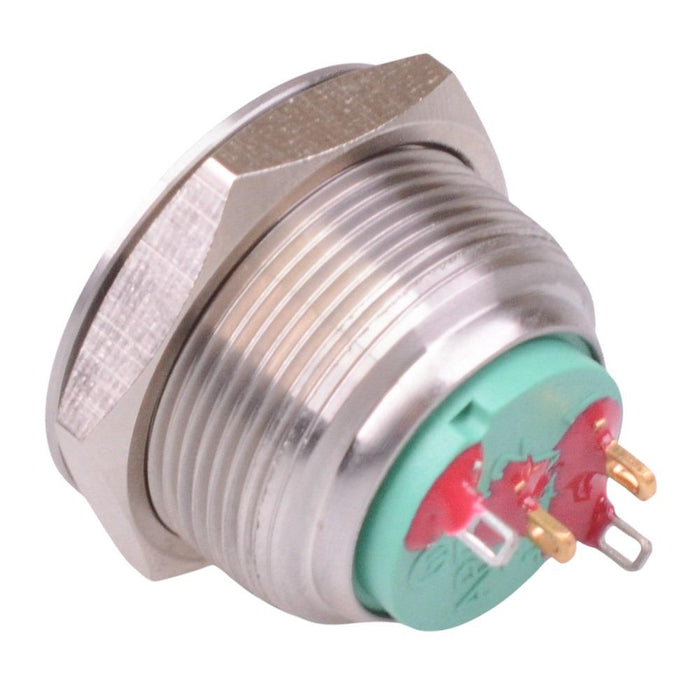

The AV03C7L3D2403E is a green illuminated 22mm momentary anti vandal push button switch featuring SPST-NO contacts and solder terminals. The switch features a stainless steel body and is suitable for a wide range of applications.
Green LED LED voltage: 4V Off-(On) momentary function SPST contacts Stainless steel body Tactile feedback Panel cut-out: 22.2mm Panel thickness: 1-6mm Screw terminals Rating: 50mA 24VDC
Specification
| Actuation | Momentary |
| Colour | Green |
| Contact configuration | SPST |
| Contact material | Stainless Steel |
| Contact rating | 50mA 24VDC |
| Current rating | 0.05A |
| Illuminated | Yes |
| Illumination colour | Green |
| Illumination voltage | 4V |
| Material | Stainless Steel |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -30°C to +70°C |
| Panel cut out | 22.2mm |
| Panel thickness | 1-6mm |
| Product series | AV |
| Protection level | IP65 |
| Switch operation | Off-(On) |
| Terminal type | Solder |
| Voltage rating | 24VDC |
