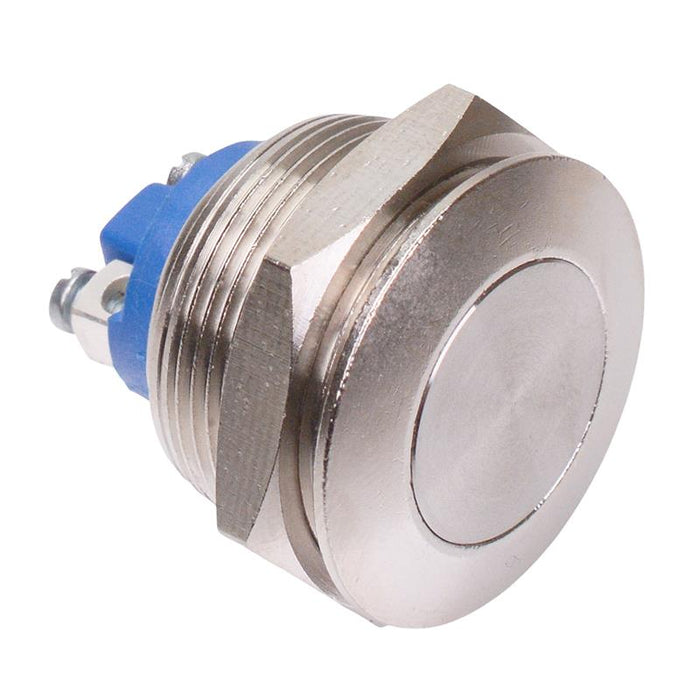

AV031003C910 APEM Momentary 22mm Push Button Vandal Switch SPST 2A 48VDC
by APEM
SKU 485982
MPN: AV031003C910
Availability:
18 in stock
Original price
£16.82
-
Original price
£16.82
Original price
£16.82
Inc VAT
£16.82
-
£16.82
Current price
£16.82
Inc VAT
The AV031003C910 is a security vandal resistant push button switch featuring NO momentary contacts and screw terminals. The switch features a long life and nickel plated brass bushing, suitable for applications requiring a reliable and durable switch.
NO SPST contacts
Flat actuator
Long life
Screw terminals
Silver plated brass contacts
Nickel plated brass brushing
Panel cut-out: 22.2mm
Rating: 2A 48VDC
Panel thickness: 1-11mm
Dimensions: 26 x 25mm (length x diameter)
Specification
Actuation | Momentary |
Back order lead time | 10 Days |
Contact configuration | SPST |
Contact rating | 2A 48VDC |
Current rating | 2A |
Illuminated | No |
Illumination colour | Non Illuminated |
Material | Nickel Plated Brass |
Mounting style | Panel |
Number of poles | 1 |
Number of positions | 2 |
Operating force | 7N |
Operating temperature | -30°C to +70°C |
Panel cut out | 22.2mm |
Panel thickness | 1-11mm |
Product series | AV |
Switch operation | Off-(On) |
Terminal type | Screw |
Voltage rating | 48VDC |
