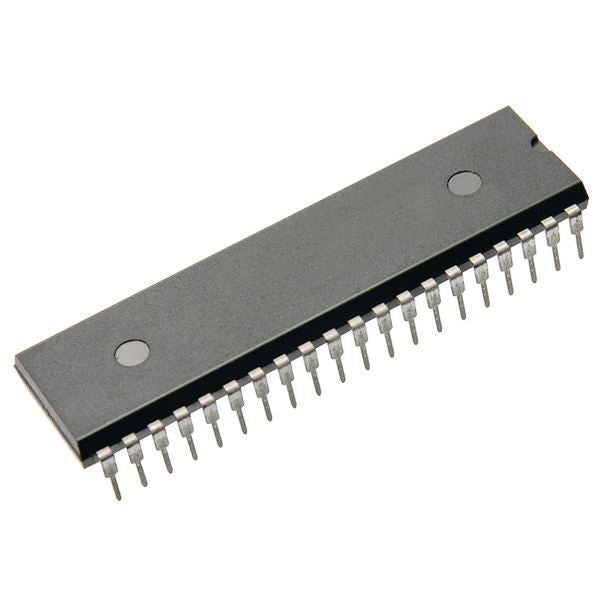

ATMEGA8515-16PU 8-Bit Microcontroller 16MHz DIP-40

The ATmega8515-16PU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega8515 achieves throughputs approaching 1 MIPS per MHz allowing the sys- tem designer to optimize power consumption versus processing speed.

Advanced RISC architecture

On-chip 2-cycle multiplier

130 powerful instructions

32 × 8 general purpose working registers

Fully static operation

Up to 16MIPS throughput at 16MHz

8Kbytes of in system self programmable flash program memory

512Bytes EEPROM

512Bytes internal SRAM

One 8-bit timer/counters with separate prescaler, one compare mode

One 16-bit timer/counter with separate prescaler, compare mode, and capture mode

Real Time Counter with separate oscillator

Three PWM channels
