AS6M-33KT2PDC 3 Position 16mm Momentary Key Switch DPDT IDEC
by IDEC
SKU 489120
MPN: AS6M-33KT2PDC
Availability:
Only 5 left!
Original price
£36.43
-
Original price
£36.43
Original price
£36.43
Inc VAT
£36.43
-
£36.43
Current price
£36.43
Inc VAT

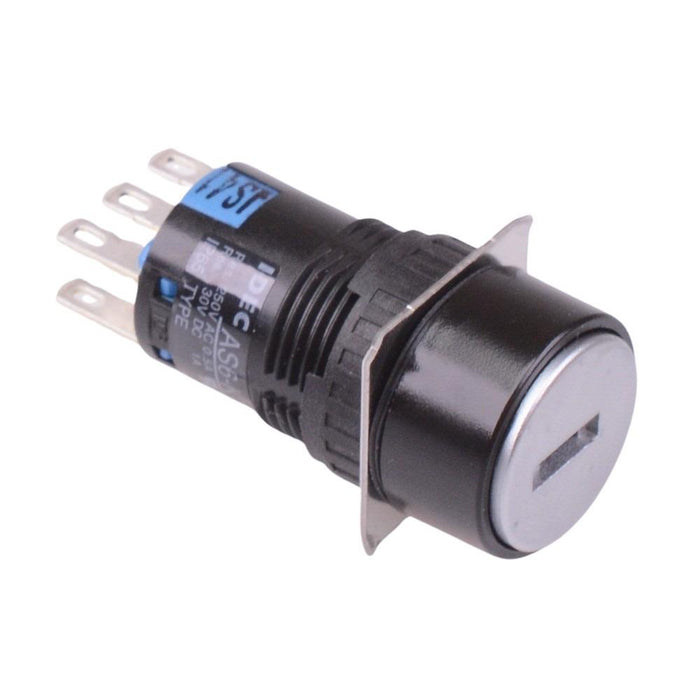

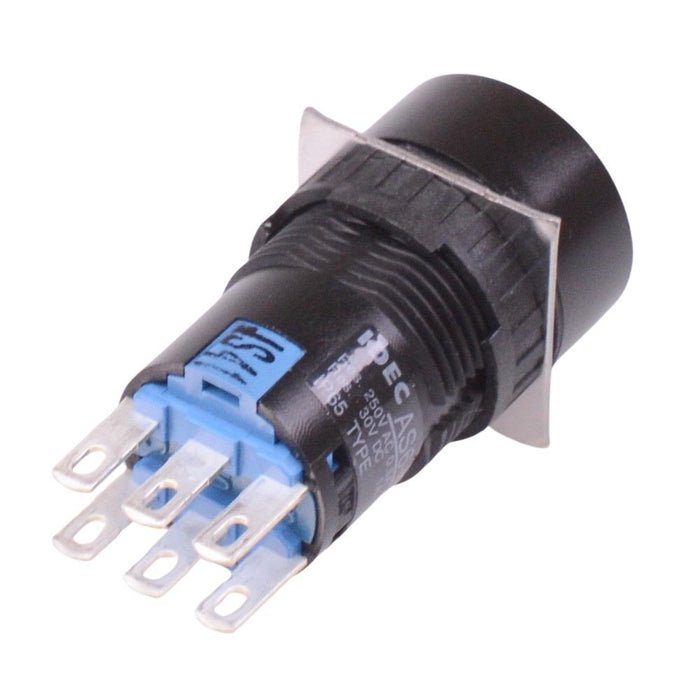

The AS6M-33KT2PDC is a 3 position momentary light duty industrial key switch by IDEC, featuring DPDT contacts and IP65 protection rating. The switch features a short 22mm body length and is suitable for 16.2mm panel cut-outs. The switch meets numerous certifications and is designed for a wide range of applications including control panels, automation, use in factories and offices.
Momentary operation 45° 3 positions Key removable in central position Spring return from right and left DPDT contacts IP65 protection rating Contact rating: 3A 250V Panel cut-out: 16.2mm Panel thickness: 0.5-6mm Solder terminals Dimensions: 39 x 18mm (length x diameter)
Specification
| Actuation | Momentary |
| Back order lead time | 196 Days |
| Contact configuration | DPDT |
| Contact material | Gold Plated Silver |
| Contact rating | 3A 250V |
| Current rating | 3A |
| Electrical life | 100,000 Cycles |
| Head type | Key |
| Illuminated | No |
| Moq | 1 |
| Mounting style | Panel |
| Number of positions | 3 |
| Operating temperature | -25°C to +55°C |
| Panel cut out | 16.2mm |
| Panel thickness | 6mm |
| Product series | A6 |
| Protection level | IP65 |
| Terminal type | Solder |
| Voltage rating | 250V |
