AS250F Red Female Silver Plated Connector 90A AMASS
by AMASS
SKU 490416
MPN: AS250-2-F.S.R
Availability:
100 in stock
Original price
£3.68
-
Original price
£3.68
Original price
£3.68
£3.68
£3.68
-
£3.68
Current price
£3.68

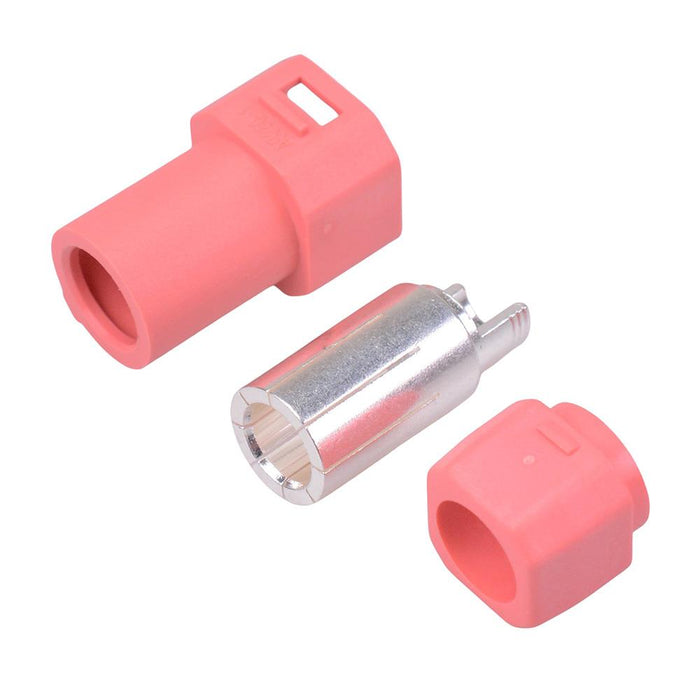

Female silver bullet connector featuring red nylon insulation and reverse polarity protection design suitable for high power applications.
Manufactured by AMASS Current rating: 90A Voltage rating: 500VDC 8mm silver plated bullet Maximum wire size: 6AWG Easy to solder Dimensions: 28.0 x 19.0mm (length x diameter)
Specification
| Back Order Lead Time | 120 Days |
| Colour | Red |
| Contact Material | Silver Plated Brass |
| Contact Resistance | 0.20mΩ |
| Current Rating | 90A |
| Gender | Female |
| Housing Material | Nylon |
| MOQ | 1 |
| Number of Poles | 1 |
| Operating Temperature | -20°C to 120°C |
| Termination Method | Solder |
| Voltage Rating | 500VDC |
| Wire Gauge | 6AWG |
