AP22M-2Q4G Green 24VDC Pilot Light Ultra-Bright LED IDEC
by IDEC
SKU 493167
MPN: AP22M-2Q4G
Availability:
10 in stock
Original price
£21.85
-
Original price
£21.85
Original price
£21.85
£21.85
£21.85
-
£21.85
Current price
£21.85

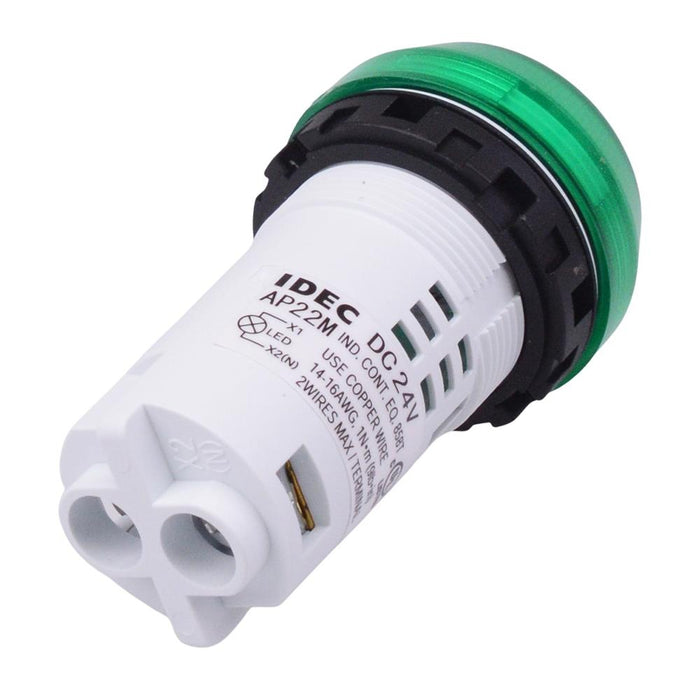

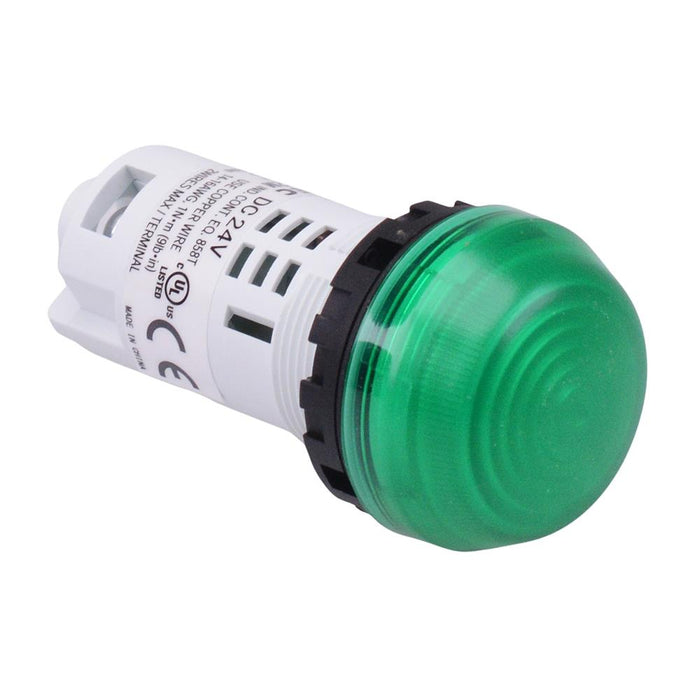

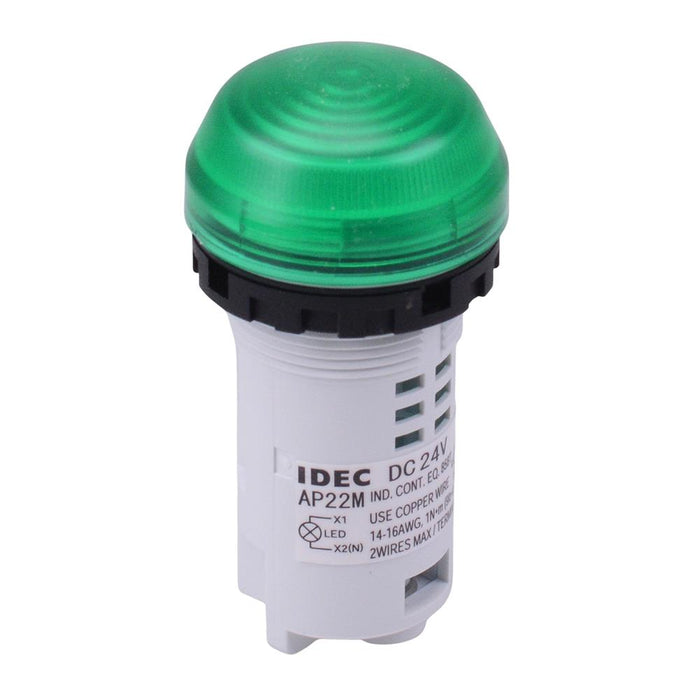

The AP22M-2Q4G is a unibody green 24V LED panel mount indicator from the AP22 series by IDEC. The innovative unibody design eliminates the need for additional contact blocks or light modules. The indicator features a dome head and IP66 protection level, suitable for use in harsh industrial applications.
LED Lamp M3.5 screw terminals Voltage: 24V DC Panel cut-out diameter: 22.3mm Forward current: 15mA Panel thickness: 0.8-6mm Dimensions: 57.5 x 29.8mm (height x diameter)
Specification
| Back Order Lead Time | 126 Days |
| Colour | Green |
| Diameter | 29.8mm |
| Forward Current | 15mA |
| Height | 57.5mm |
| Lamp Type | LED |
| Life Expectancy | 30,000 Hours |
| MOQ | 1 |
| Mounting Type | Panel Mount |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 22.3mm |
| Panel Thickness | 0.8-6mm |
| Protection Level | IP66 |
| Voltage Rating | 24VDC |
