Ammeter with Chassis Mounting Panel 7-33VDC A25-1BPS-BB3-R
by SCI
SKU 491356
MPN: A25-1BPS-BB3-R
Availability:
Only 5 left!
Original price
£15.72
-
Original price
£15.72
Original price
£15.72
£15.72
-
£15.72
Current price
£15.72

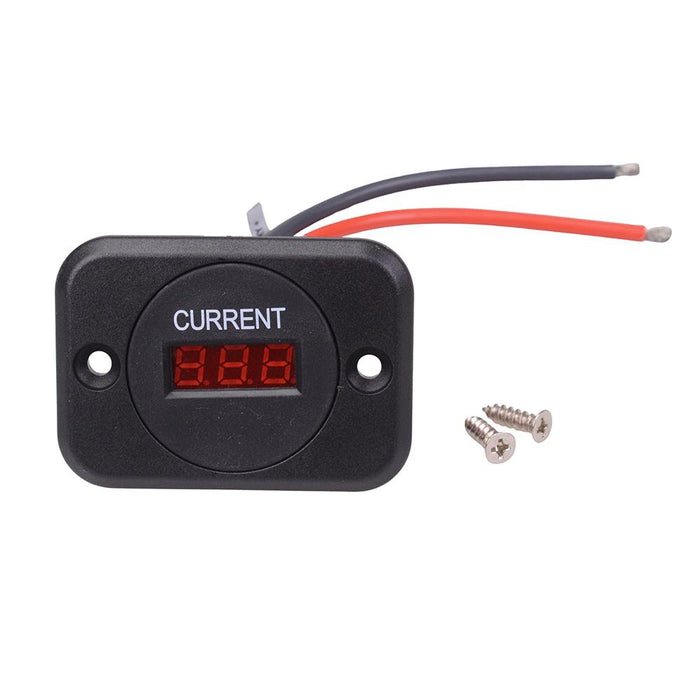

The A25-1BPS-BB3-R is a ammeter complete with mounting panel. The meter features 7-33VDC operating voltage and is capable of measuring from 0-20A current. The meter features a red LED display and is protected against reverse polarity and surge protection. The housing allows the meter to be easily mounted to a panel, suitable for 12V and 24V applications including automotive.

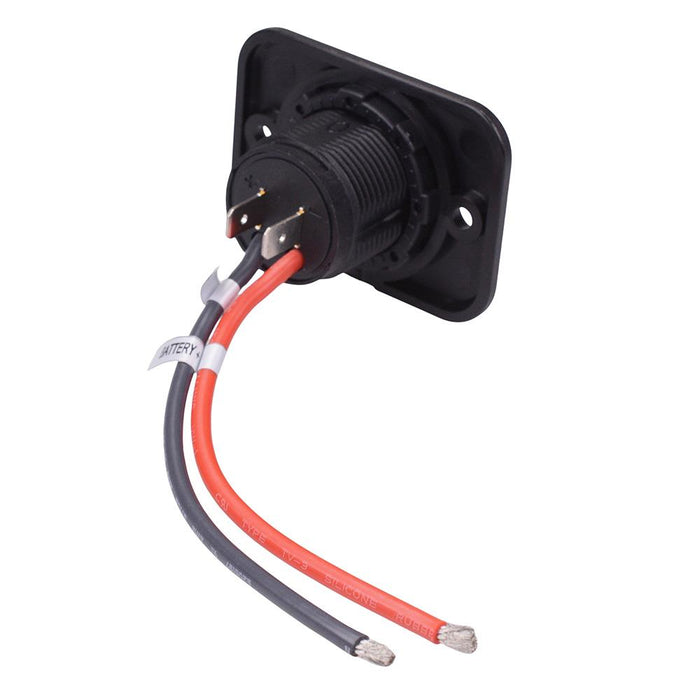

0-20A test range Red LED display Operating voltage: 7-33VDC Reverse polarity protection Surge protection 6.3mm quick connect terminals and 14AWG tail leads Mounting hole pitch: 47.5mm Dimensions: 39.4 x 62.8 x 46mm (depth x width x height)
Specification
| Back Order Lead Time | 150 Days |
| Current Test Range | 0-20A |
| LED Colour | Red |
| MOQ | 1 |
| Mounting Type | Chassis Mount |
| Panel Cut Out | 29mm |
| Supply Voltage | 7-33VDC |
| Termination Method | Quick Connect / Tail Leads |
