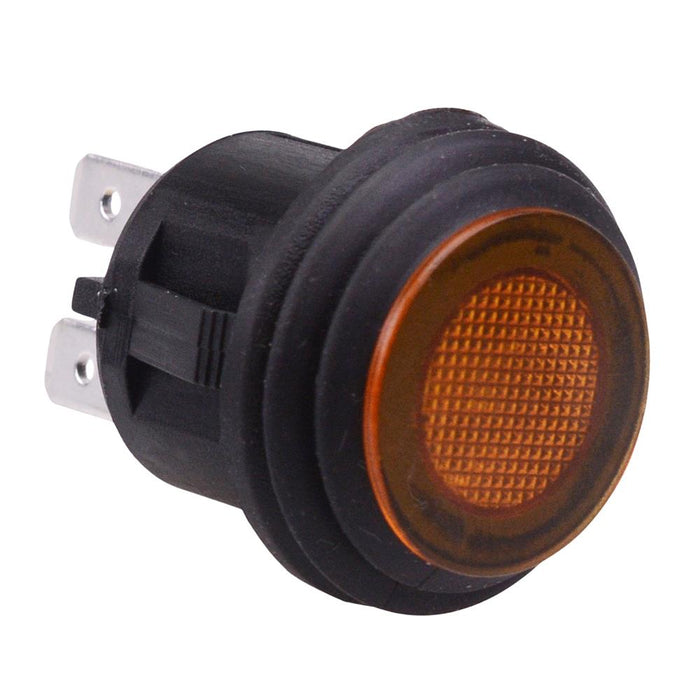

Amber On-Off 12V illuminated Push Button Switch 20A
SKU 489280
MPN: ASW-29D/R Amber
Availability:
138 in stock
Original price
£1.58
-
Original price
£1.58
Original price
£1.58
Inc VAT
£1.58
-
£1.58
Current price
£1.58
Inc VAT
illuminated latching push button switch featuring a green LED and 4.8mm quick connect terminals suitable for 12V applications including automotive.

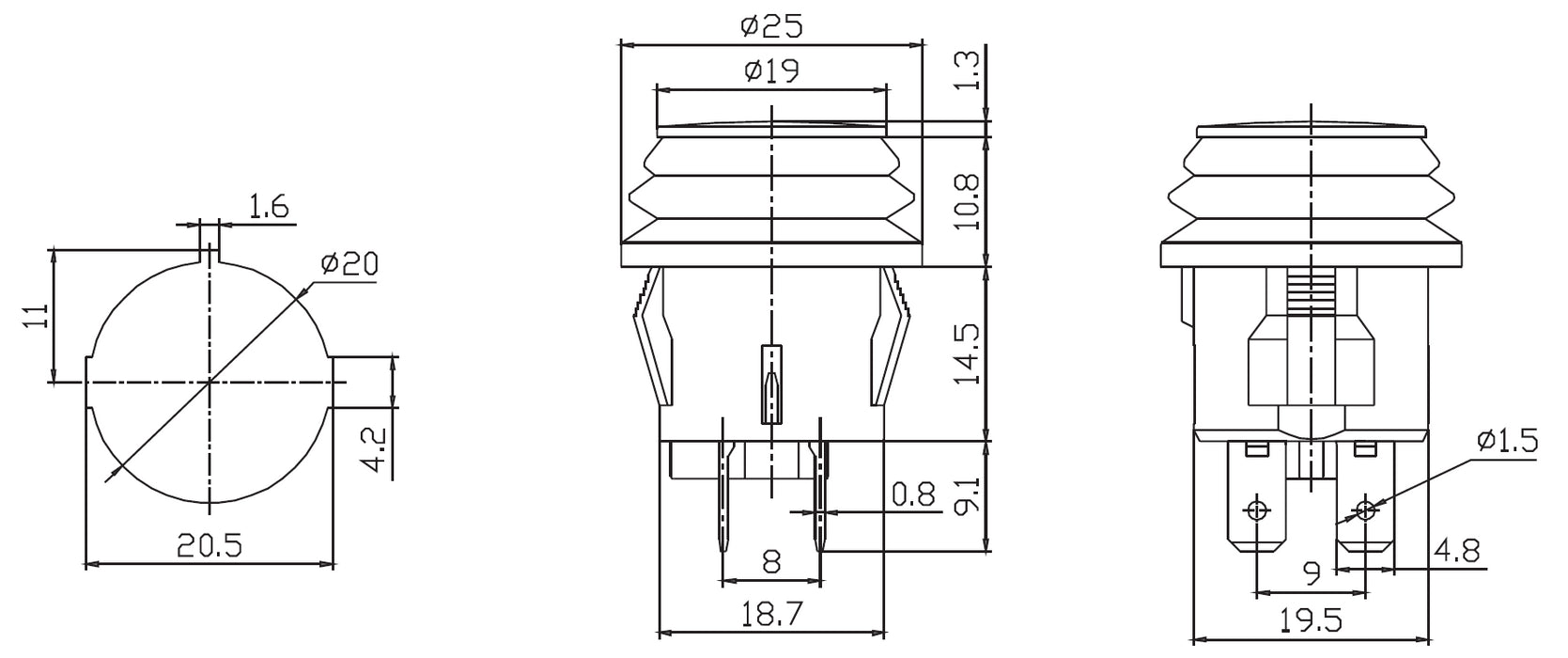

On-Off action SPST contacts Amber 12V LED Rating: 20A 12VDC 4.8mm quick connect terminals Panel cut-out: 20mm Dimensions: 35.7 x 25mm (Height x Diameter)
Specification
| Actuation | Latching |
| Back order lead time | 120 Days |
| Colour | Amber |
| Contact configuration | SPST |
| Contact rating | 20A 12VDC |
| Current rating | 20A |
| Electrical life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Amber |
| Illumination voltage | 12VDC |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 20mm |
| Switch operation | On-Off |
| Terminal type | Quick Connect |
| Voltage rating | 12VDC |
