Aluminium Foot Switch W/Guard SPDT IP65 15A 250VAC
by Xurui
SKU 489600
MPN: XF-302
Availability:
20 in stock
Original price
£17.45
-
Original price
£17.45
Original price
£17.45
Inc VAT
£17.45
-
£17.45
Current price
£17.45
Inc VAT

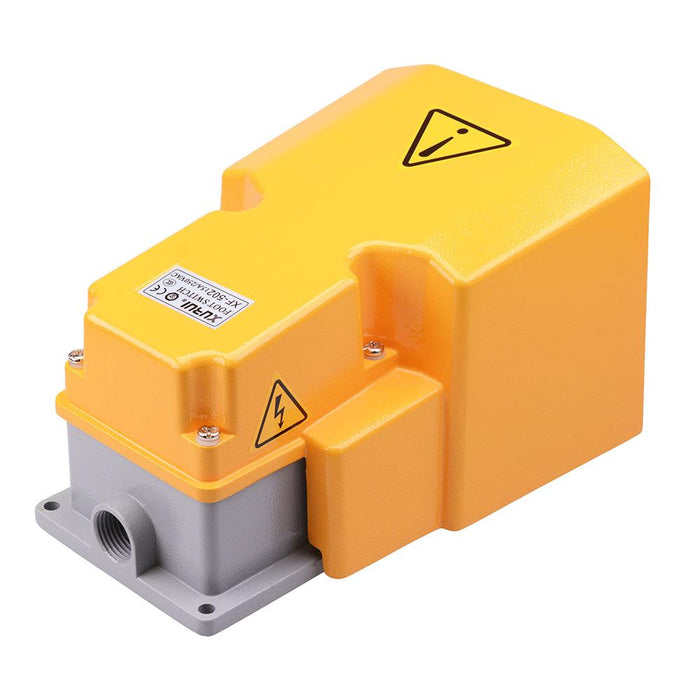

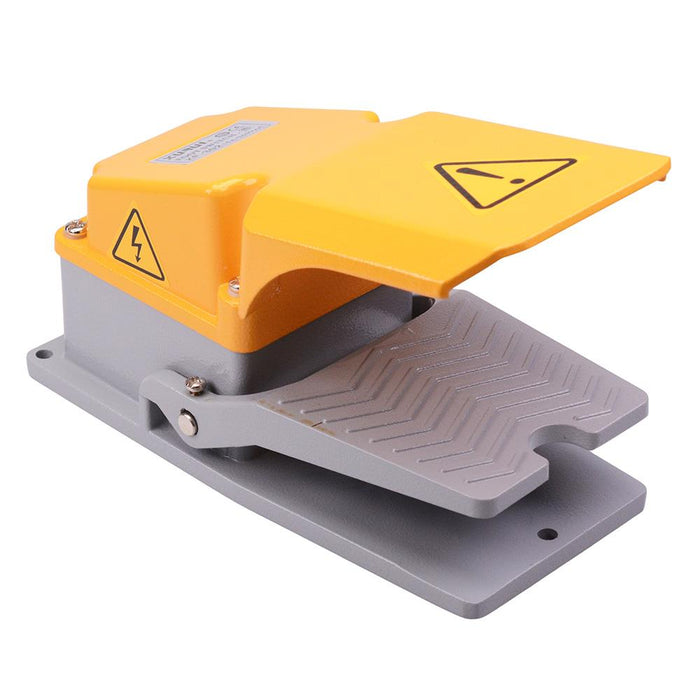

Aluminium foot switch featuring changeover SPDT contacts and momentary switch function. The switch features a yellow guard and IP65 protection rating. The switch is suitable for use with industrial automation equipment, transport test and various other applications.
NO / NC contacts Rating: 15A 250VAC Housing material: Aluminium Protection rating: IP65 Dimensions: 198 x 98 x 127mm (Length x Width x Height)
Specification
| Back order lead time | 120 Days |
| Contact configuration | SPDT |
| Contact rating | 15A 250VAC |
| Current rating | 15A |
| Electrical life | 100,000 Cycles |
| Illuminated | No |
| Material | Aluminium |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -20°C to +70°C |
| Protection level | IP65 |
| Switch operation | On-On |
| Terminal type | Screw |
| Voltage rating | 250VAC |
