AL8M-A11G Green 8mm illuminated Latching Round Push Button 8mm SPDT
by IDEC
SKU 489084
MPN: AL8M-A11G
Availability:
9 in stock
Original price
£9.89
-
Original price
£9.89
Original price
£9.89
Inc VAT
£9.89
-
£9.89
Current price
£9.89
Inc VAT

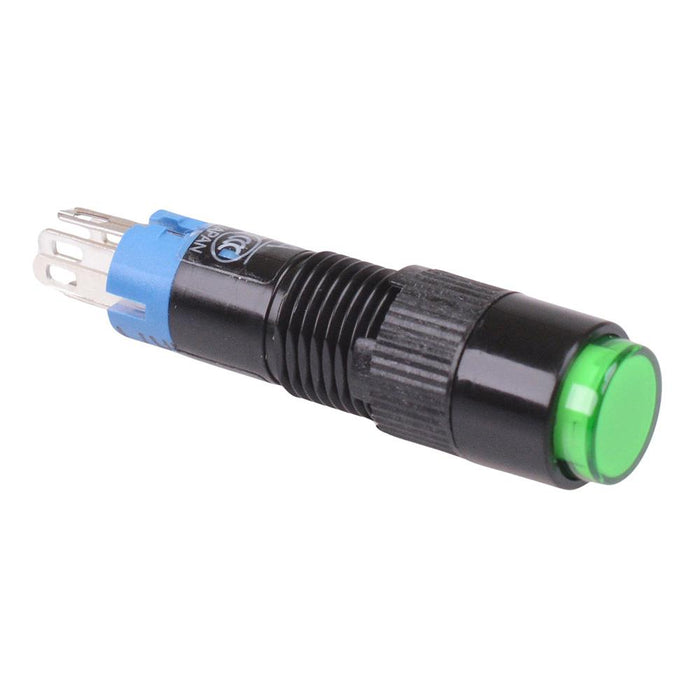

The AL8M-A11G is a latching industrial push button switch by IDEC, featuring SPDT contacts and IP40 protection rating. The switch features green LED illumination and is suitable for 8mm panel cut-outs. The switch meets numerous certifications and is designed for a wide range of applications including control panels, automation and use in factories.
latching operation SPDT contacts IP40 protection rating Green 2.9V illumination Contact rating: 3A 250V Panel cut-out: 8mm Panel thickness: 0.5-6mm Solder terminals Dimensions: 38 x 9mm (length x diameter)
Specification
| Actuation | Latching |
| Back order lead time | 196 Days |
| Colour | Green |
| Contact configuration | SPDT |
| Contact material | Silver |
| Contact rating | 3A 250V |
| Current rating | 3A |
| Electrical life | 50,000 Cycles |
| Head type | Extended |
| Illuminated | Yes |
| Illumination colour | Green |
| Illumination voltage | 2.9VDC |
| Moq | 1 |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -25°C to +55°C |
| Panel cut out | 8mm |
| Panel thickness | 6mm |
| Product series | A8 |
| Protection level | IP40 |
| Terminal type | Solder |
| Voltage rating | 250V |
