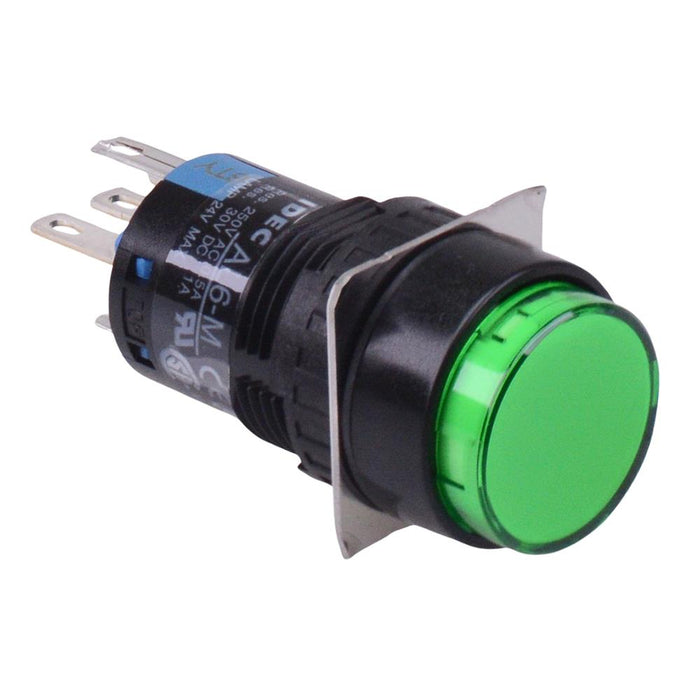

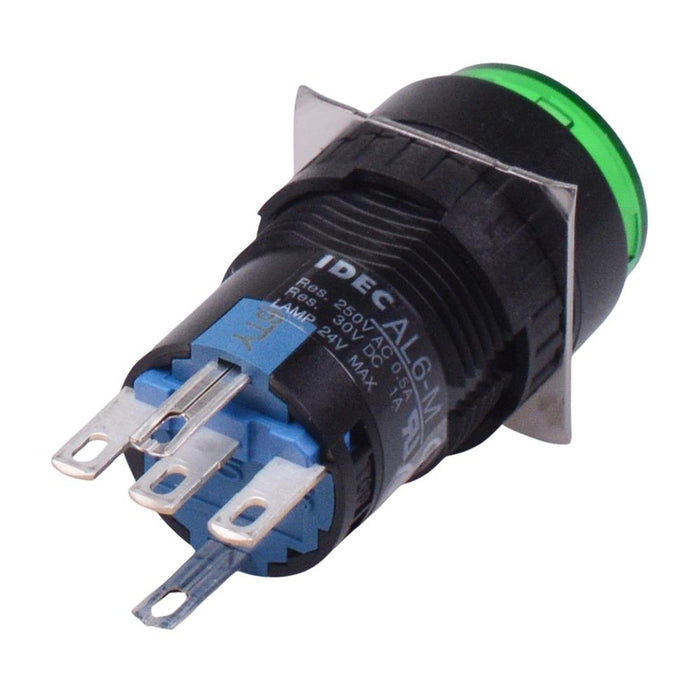

AL6M-M14G Green 16mm 24V Momentary Round illuminated Push Button Switch SPDT
by IDEC
SKU 493161
MPN: AL6M-M14G
Availability:
10 in stock
Original price
£18.98
-
Original price
£18.98
Original price
£18.98
£18.98
-
£18.98
Current price
£18.98
The AL6M-M14G is a momentary industrial push button switch by IDEC, featuring SPDT contacts and IP40 protection rating. The switch features green LED illumination and is suitable for 16.2mm panel cut-outs. The switch meets numerous certifications and is designed for a wide range of applications including control panels, automation and use in factories.
Momentary operation SPDT contacts IP40 protection rating Green 24VAC/DC illumination Contact rating: 3A 250V Panel cut-out: 16.2mm Panel thickness: 0.5-6mm Solder terminals Dimensions: 39 x 18mm (length x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 126 Days |
| Colour | Green |
| Contact Configuration | SPDT |
| Contact Material | Gold Plated Silver |
| Contact Rating | 3A 250V |
| Current Rating | 3A |
| Electrical Life | 100,000 Cycles |
| Head Type | Extended |
| Illuminated | Yes |
| Illumination Colour | Green |
| Illumination Voltage | 24V |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 16.2mm |
| Panel Thickness | 0.5-6mm |
| Product Series | A6 |
| Protection Level | IP40 |
| Terminal Type | Solder |
| Voltage Rating | 250V |
