AL6H-M100 16mm Momentary Rectangular illuminated Push Button Body SPDT IDEC
by IDEC
SKU 493159
MPN: AL6H-M100
Availability:
10 in stock
Original price
£6.13
-
Original price
£6.13
Original price
£6.13
£6.13
-
£6.13
Current price
£6.13

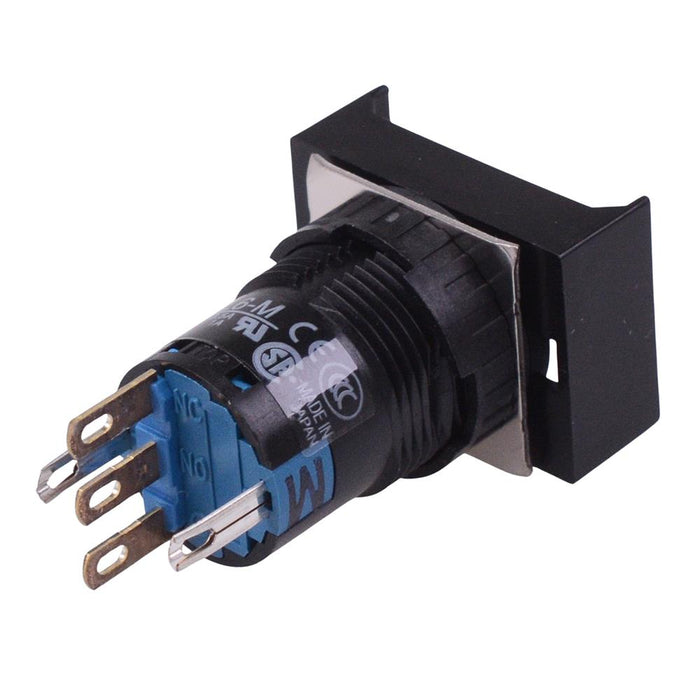

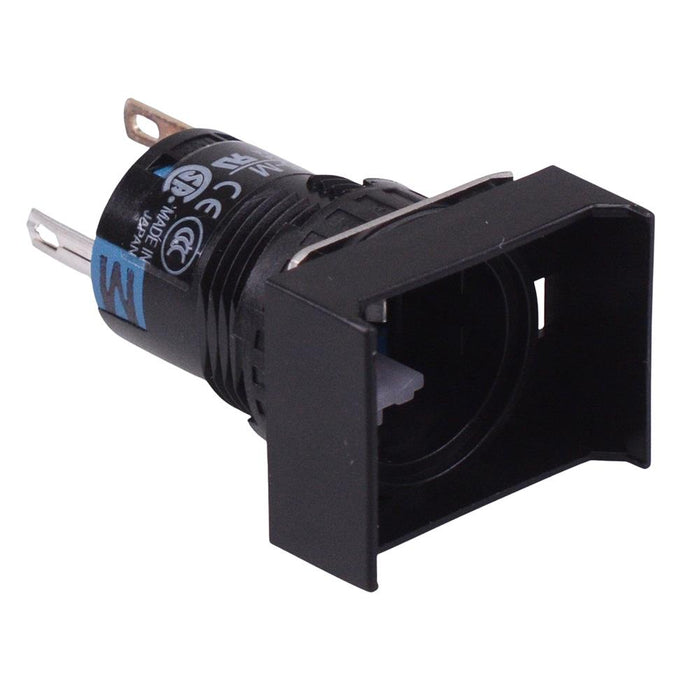

The AL6H-M100 is a momentary rectangle push button body featuring SPDT contacts and 16mm panel cut-out. The body is from the IDEC A6 series and requires a compatible lens and LED lamp. The body features solder terminals and is suitable for 0.5mm to 6mm panel thickness.
Specification
| Actuation | Momentary |
| Back Order Lead Time | 126 Days |
| Contact Configuration | SPDT |
| Contact Material | Gold Plated Silver |
| Contact Rating | 3A 250V |
| Current Rating | 3A |
| Electrical Life | 100,000 Cycles |
| Head Type | Extended |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 16.2mm |
| Panel Thickness | 6mm |
| Product Series | A6 |
| Protection Level | IP65 |
| Terminal Type | Solder |
| Voltage Rating | 250V |
