Air Conditioning illuminated Automotive Momentary 12mm Push Button Switch SPST IP67
by APEM
SKU 489990
MPN: IPP3FAD2R0Y101X1223-21
Availability:
497 in stock
Original price
£18.89
-
Original price
£18.89
Original price
£18.89
Inc VAT
£18.89
-
£18.89
Current price
£18.89
Inc VAT

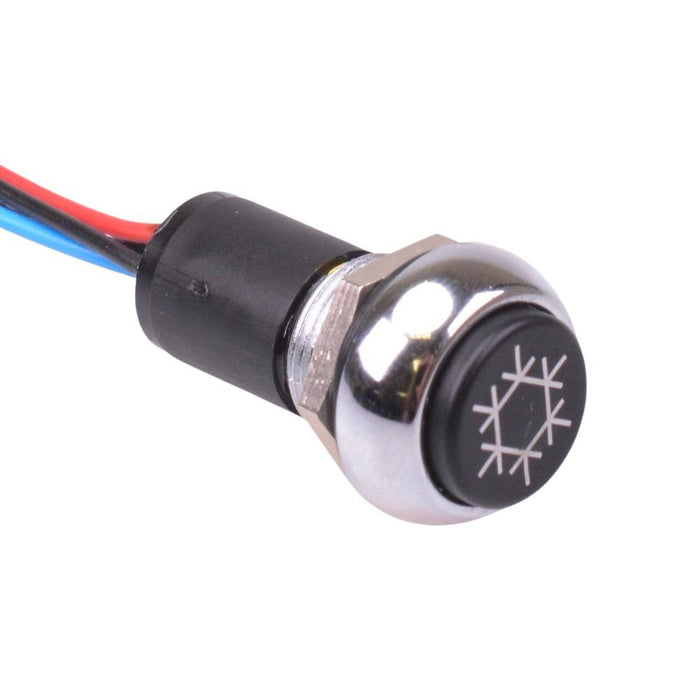

The IPP3FAD2R0Y101X1223-21 is a momentary round push button switch with a 12mm chrome bushing and illuminated with a yellow LED. The switch is prewired with 150mm flying leads and features SPST contacts. Suitable for automotive applications.
Air conditioning illuminated symbol Momentary NO operation Yellow LED LED forward voltage: 2.1V LED forward current: 20mA 150mm flying leads SPST contacts 12mm bushing Sealed to IP67 Panel cut-out: 13.6mm Solder lug terminals Rating: 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC Panel thickness: 1.5-4mm Dimensions: 29.8 x 17.5mm (height x diameter)
Specification
| Actuation | Momentary |
| Colour | Black |
| Contact configuration | SPST |
| Contact material | Gold Plated Silver |
| Contact rating | 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC |
| Current rating | 5A |
| Illuminated | Yes |
| Illumination colour | Yellow |
| Illumination voltage | 2.1V |
| Material | Zinc Diecast |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 13.6mm |
| Panel thickness | 1.5-4mm |
| Product series | IP |
| Protection level | IP67 |
| Switch operation | Off-(On) |
| Terminal type | Flying Leads |
| Voltage rating | 48VAC/DC |
