Adjustable Roller Arm Metal Limit Switch 10A IP65
SKU 491532
MPN: XZ-9508
Availability:
Out of stock
Sold out
Original price
£8.57
-
Original price
£8.57
Original price
£8.57
£9.00
£9.00
-
£9.00
Current price
£9.00
Adjustable roller arm limit switch constructed from a hardwearing zinc cast outer shell, providing high mechanical strength and sealed to IP65. The limit switch features 1NO1NC contacts, commonly used in industrial applications including mechanical equipment, assembly lines, instruments and tools.

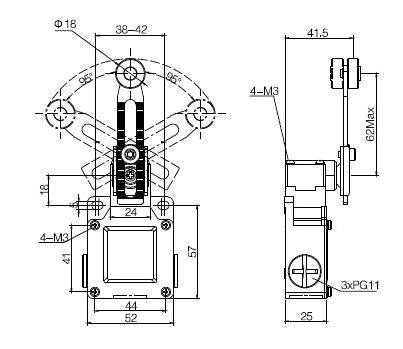

Contacts: 1NO1NC Protection level: IP65 Rating: 10(4)A/250VAC, 6(2)A380VAC Electrical life: 100,000+ cycles Mechanical life: 1,000,000+ cycles Operating force: 100g Dimensions: 58 x 25mm (width x height)
Specification
| Back Order Lead Time | 120 Days |
| Contact Configuration | NO/NC |
| Contact Rating | 10(4)A250VAC, 6(2A)380VAC |
| Current Rating | 10A |
| Electrical Life | 100,000 Cycles |
| MOQ | 1 |
| Number of Positions | 2 |
| Operating Force | 500g Max |
| Operating Temperature | -10°C to +70°C |
| Protection Level | IP65 |
| Release Force | 80g Min |
| Terminal Type | Screw |
| Voltage Rating | 250VAC |
