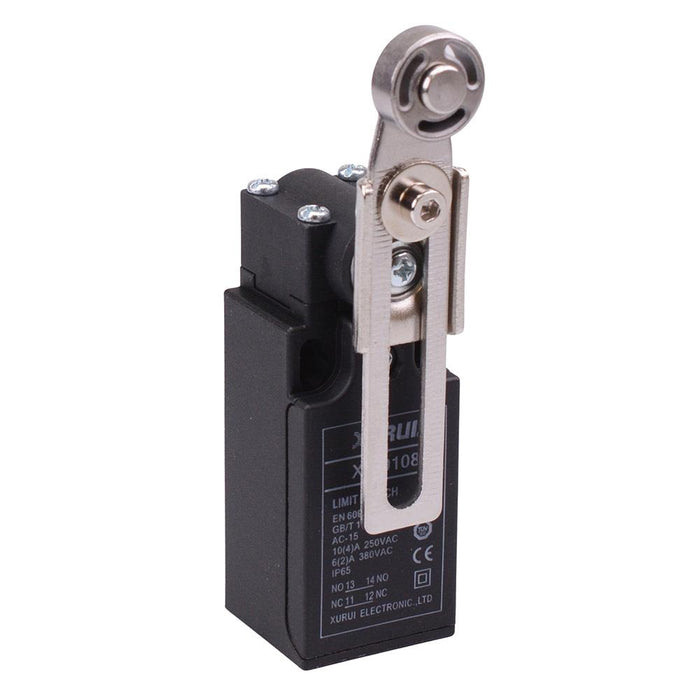

Adjustable Roller Arm Industrial Limit Switch IP65 10A 250V
by Xurui
SKU 489607
MPN: XZ-9108
Availability:
19 in stock
Original price
£5.50
-
Original price
£5.50
Original price
£5.50
Inc VAT
£5.50
-
£5.50
Current price
£5.50
Inc VAT
Industrial limit switch featuring an adjustable roller arm actuator and 2NO/2NC contacts. The switch is housed in a lightweight plastic housing and is suitable for a wide range of industrial, automation and mechanical applications.
Rating: 10(4)A/250VAC, 6(2)A 380VAC Push button plunger IP65 protection rating 2NO/NC contacts Enclosed screw terminals Operating force max: 500g Release force min: 80g Dimensions: 70.5 x 30.5 x 30.0mm (height excl arm x width x depth)
Specification
| Back order lead time | 120 Days |
| Contact configuration | DPDT |
| Contact rating | 10A 250VAC |
| Current rating | 10A |
| Electrical life | 100,000 Cycles |
| Moq | 1 |
| Number of positions | 2 |
| Operating force | 500g Max |
| Operating temperature | -10°C to +70°C |
| Protection level | IP65 |
| Release force | 80g Min |
| Terminal type | Screw |
| Voltage rating | 250VAC |
