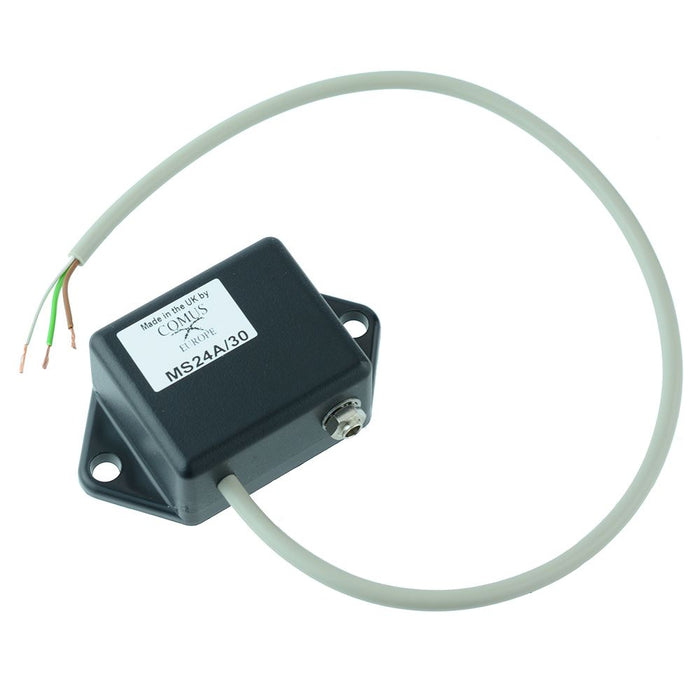

ABS Motion Sensor Switch Module 40mA - MS24A/30, S1430

by Comus
SKU 552587

MPN: S1430

Availability:
Out of stock
Sold out
Original price £24.43 - Original price £24.43
Original price
£24.43 Inc VAT
£24.43 - £24.43
Current price £24.43 Inc VAT
The MS24A/30 is a non-mercury sensor designed to detect movement or vibration. The sensor will react when disturbed by giving a fleeting change of state (ie normally open to normally closed or vice versa). The time taken to settle depends on the amount of energy absorbed by the sensor; the settled state will normally be closed. The sensors contacts, when undisturbed, are normally closed, however it is possible to mount the switch with contacts open therefore we recommend that applications look for change of state not contact open or closed. This product offers additional sensitivity adjustment via an internal potentiometer. The output is referenced to 0V and can drive a transistor or similar device.

  • Resistant to severe environmental conditions
  • ABS plastic case
  • 3 x round 0.14mm² PVC covered and insulated
  • Maximum supply current: 40mA
  • Maximum supply voltage: 5VDC
  • Output: 24mA at 5VDC
  • Specification
    Back order lead time 180 Days
    Material ABS
    Output current 24mA
    Supply current 40mA
    Supply voltage 5VDC
