AB6E-4BV02PTRH Unibody 16mm Emergency Stop Switch 40mm Mushroom 2NC IDEC
by IDEC
SKU 489906
MPN: AB6E-4BV02PTRH
Availability:
48 in stock
Original price
£17.83
-
Original price
£17.83
Original price
£17.83
Inc VAT
£17.83
-
£17.83
Current price
£17.83
Inc VAT

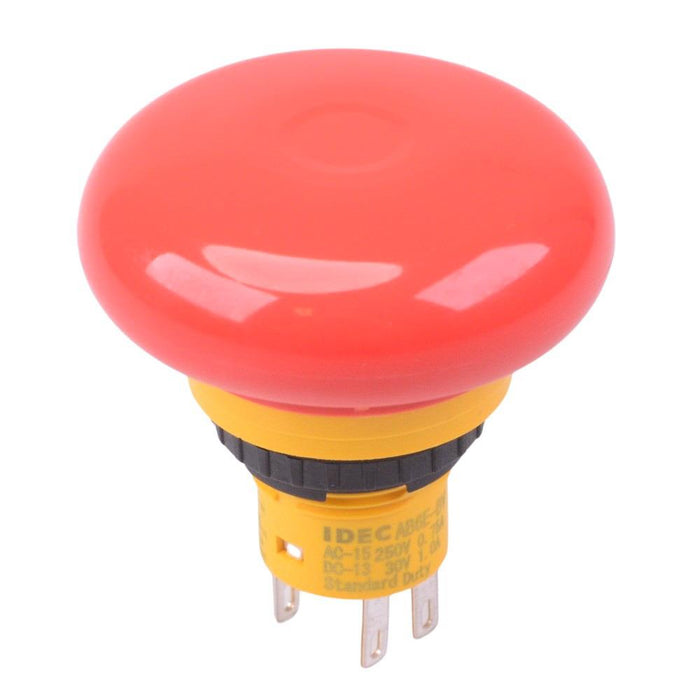

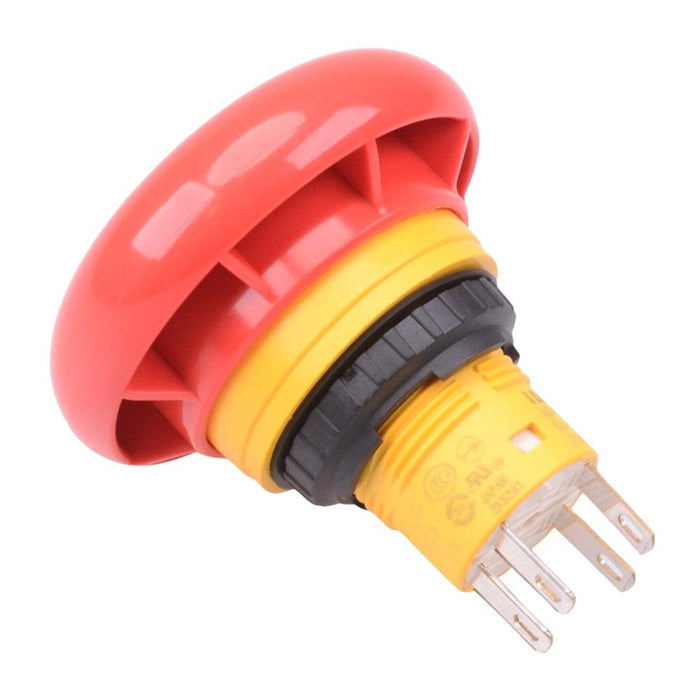

The AB6E-4BV02PTRH is a 16mm E-stop switch manufactured by IDEC, featuring a 40mm mushroom head and 2NC contacts. The switch features the shortest depth behind the panel in its class and tab terminals allowing easy wiring using quick connect terminals. The switch meets major certifications and features a smooth button making it suitable applications including food processing machines, semiconductor manufacturing equipment and other applications requiring a sleek design of emergency stop switch.
2NC contacts 16mm panel hole diameter Can be reset by pulling and turning IP65 protection level 2.8mm quick connect terminals Only 23.9mm depth behind the panel 30mm mushroom head 5A 250VAC rating RU, TUV, CE, CCC certification
Specification
| Actuation | Twist Release |
| Colour | Red |
| Contact configuration | 2NC |
| Current rating | 5A |
| Electrical life | 100,000 Cycles |
| Head type | Mushroom |
| Illuminated | No |
| Moq | 1 |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -25°C to +60°C |
| Panel cut out | 16.2mm |
| Product series | X6 |
| Protection level | IP65 |
| Terminal type | Quick Connect |
| Voltage rating | 250V |
