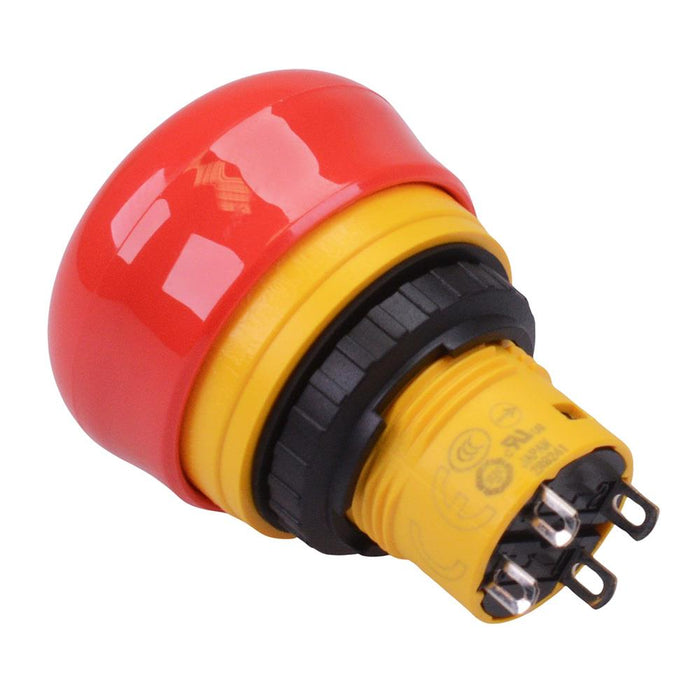

AB6E-3BV02PRH Unibody 16mm Emergency Stop Switch 30mm Mushroom 2NC IDEC
by IDEC
SKU 489683
MPN: AB6E-3BV02PRH
Availability:
10 in stock
Original price
£18.52
-
Original price
£18.52
Original price
£18.52
Inc VAT
£18.52
-
£18.52
Current price
£18.52
Inc VAT
The AB6E-3BV02PRH is a 16mm E-stop switch manufactured by IDEC, featuring a 30mm mushroom head and 2NC contacts. The switch features IDEC's third generation reverse energy structure and the shortest behind panel depth in its class . The switch meets numerous certifications and features a smooth button making it suitable applications including food processing machines, semiconductor manufacturing equipment and other applications requiring a sleek design of emergency stop switch.
Fail safe design Contacts: 2NC Rated current: 5A Rated insulation voltage: 250V Panel cut-out: 16.2mm Panel thickness: 0.8-4.5mm Behind panel depth: 19.5mm Head diameter: 30mm Solder terminals UL, c-UL recognized, EN compliant
Specification
| Actuation | Twist Release |
| Back order lead time | 10 Days |
| Colour | Red |
| Contact configuration | 2NC |
| Current rating | 5A |
| Electrical life | 100,000 Cycles |
| Head type | Mushroom |
| Illuminated | No |
| Moq | 1 |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -25°C to +60°C |
| Panel cut out | 16.2mm |
| Product series | X6 |
| Protection level | IP65 |
| Terminal type | Solder |
| Voltage rating | 250V |
