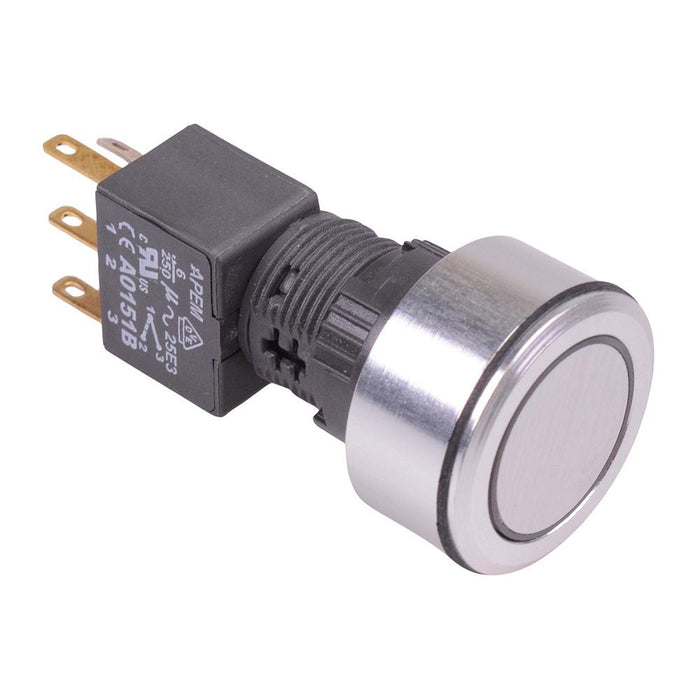

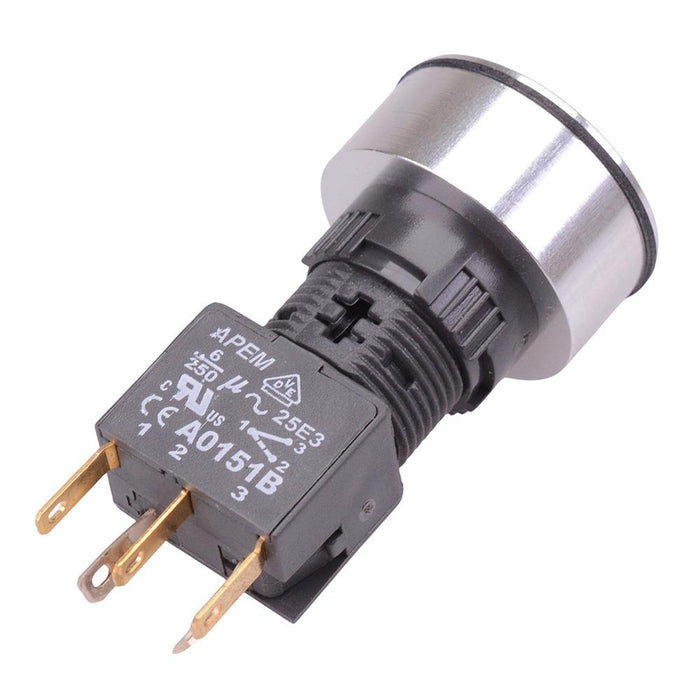

A1PCA1Y120I203 Green 6V LED Momentary Aluminium Push Button Switch SPDT APEM
by APEM
SKU 492457
MPN: A1PCA1Y120I203
Availability:
10 in stock
Original price
£35.46
-
Original price
£35.46
Original price
£35.46
£35.46
-
£35.46
Current price
£35.46
The A1PCA1Y120I203 is a aluminium flush mounting push button switch featuring green 6V illumination and IP65 sealing. The switch features SPDT contacts and momentary operation, suitable for industrial control applications.
Contacts: SPDT Panel cut-out: 22mm illumination: 6V green LED Terminals: 2.8mm quick connect Head diameter: 25mm Rating: 6A 250VAC, 6A 12VDC
Specification
| Actuation | Momentary |
| Back Order Lead Time | 120 Days |
| Colour | Green |
| Contact Configuration | SPDT |
| Contact Rating | 6A 250VAC, 6A 12VDC |
| Current Rating | 6A |
| Electrical Life | 50,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Green |
| Illumination Voltage | 6V |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 22mm |
| Product Series | A1 |
| Protection Level | IP65 |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC / 12VDC |
