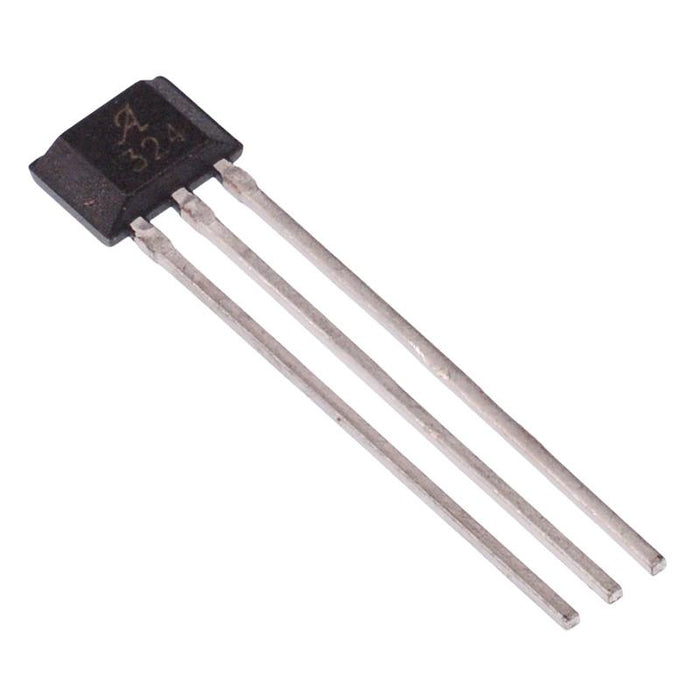

A1324LUA-T Linear Hall Effect Sensor 4.5-5.5VDC

These ratiometric Hall effect sensor ICs provide a voltage output that is proportional to the applied magnetic field. They feature a quiescent voltage output of 50% of the supply voltage. The A1324 feature factory programmed sensitivities of 5.0 mV/G, 3.125 mV/G, and 2.5 mV/G, respectively. The features of these linear devices make them ideal for use in automotive and industrial applications requiring high accuracy, and operate through an extended temperature range, -40°C to 150°C.

Temperature-stable quiescent output voltage and sensitivity

Output voltage proportional to magnetic flux density

Low-noise output increases accuracy

Precise recoverability after temperature cycling

Ratiometric rail-to-rail output

Immune to mechanical stress

Solid-state reliability

Enhanced EMC performance for stringent automotive applications

Wide ambient temperature range: -40°C to 150°C
