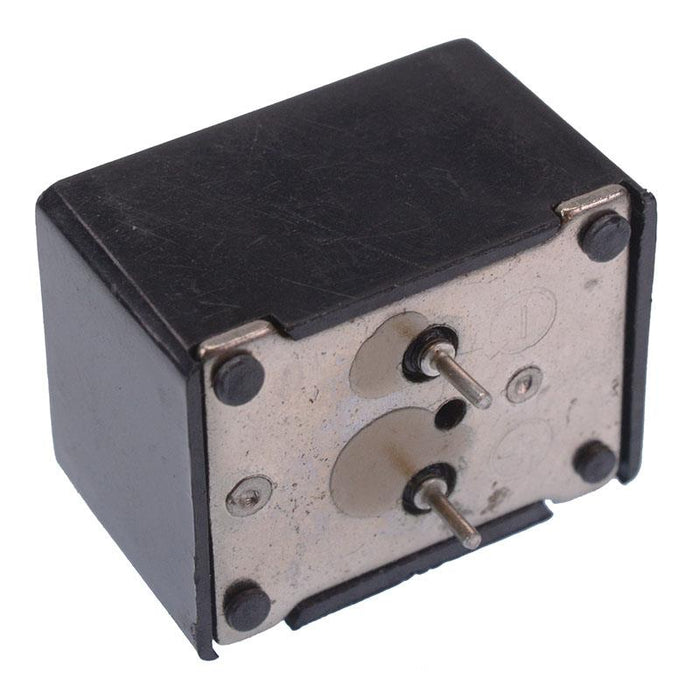

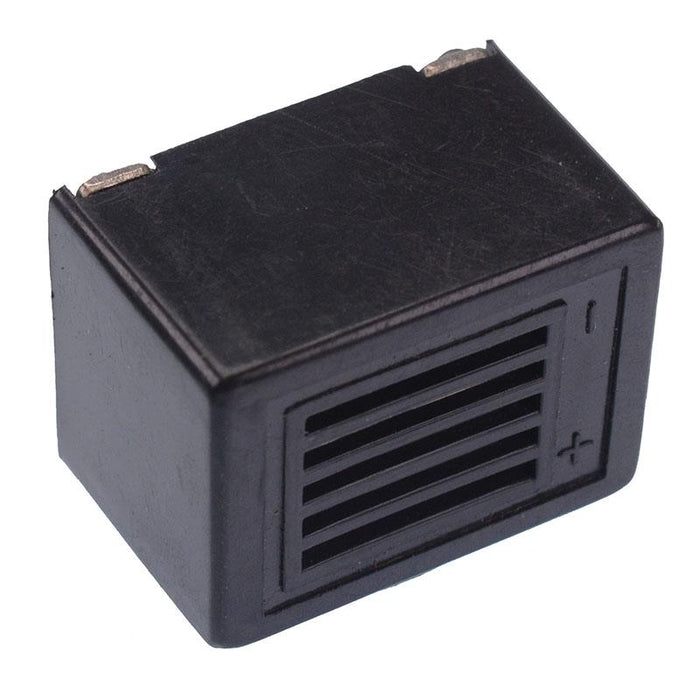

9V PCB Electronic Buzzer

SKU 484512

MPN: 484512

Availability:
485 in stock
Original price £0.72 - Original price £0.72
Original price
£0.72
£0.72 - £0.72
Current price £0.72
9V PCB mount electronic buzzer featuring a 7.6mm terminal pitch and 6-12V operating voltage.

  • Operating voltage: 6-12V
  • Rated current: 25mA
  • Sound output @ 20cm: 70dB
  • Frequency: 400±100Hz
  • PCB terminal pitch: 7.6mm
  • Dimensions: 23 x 17 x 15mm (Length x Width x Height)
  • Specification
    Back Order Lead Time 45 Days
    Frequency 400Hz
    Input Voltage 6-12VDC
    Mounting Style PCB Mount
    Operating Temperature -20°C to +60°C
    Pitch 7.6mm
    Rated Current 25mA
    Rated Voltage 9VDC
    Sound Output 75dB @ 20cm
