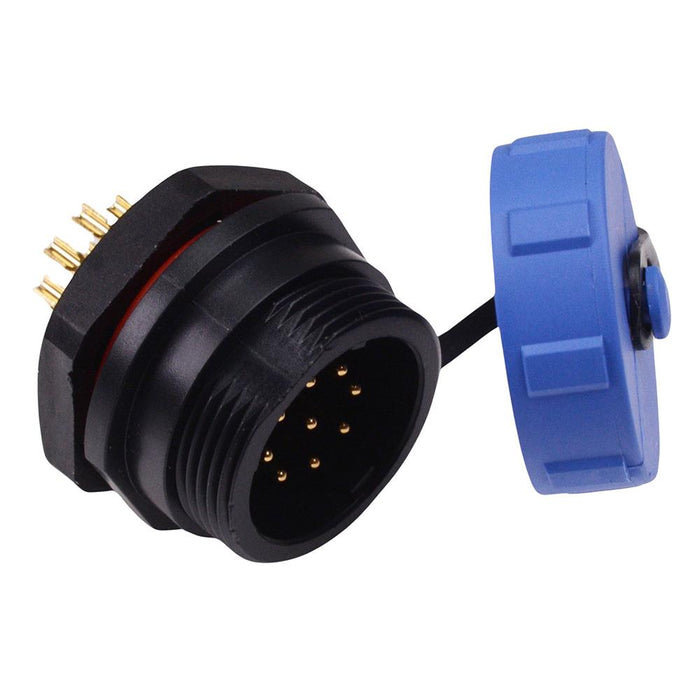

9 Pin Waterproof W17 Male Socket Panel Mount Connector IP68 5A

SKU 488546

MPN: 488546

92 in stock
Original price £2.88 - Original price £2.88
Original price
£2.88 Inc VAT
£2.88 - £2.88
Current price £2.88 Inc VAT
9 way male panel mount socket featuring IP68 protection and 10A current rating, suitable for applications requiring a waterproof and rugged circular connector.

  • Protection level: IP68
  • Rating: 10A 400V
  • Panel cut-out: 17 x 16mm
  • Panel thickness: 3mm max
  • Solder termination
  • Rated for 500 mating cycles
  • Dimensions: 25.2 x 25.5mm (height x diameter)
  • Specification
    Back order lead time 30 Days
    Contact material Gold Plated Brass
    Current rating 5A
    Gender Male
    Housing material PA66
    Mounting type Panel Mount
    Number of ways 9
    Operating temperature -25°C to +80°C
    Panel cut out 17mm
    Protection level IP68
    Termination method Solder
    Thread size W17
    Voltage rating 400V
