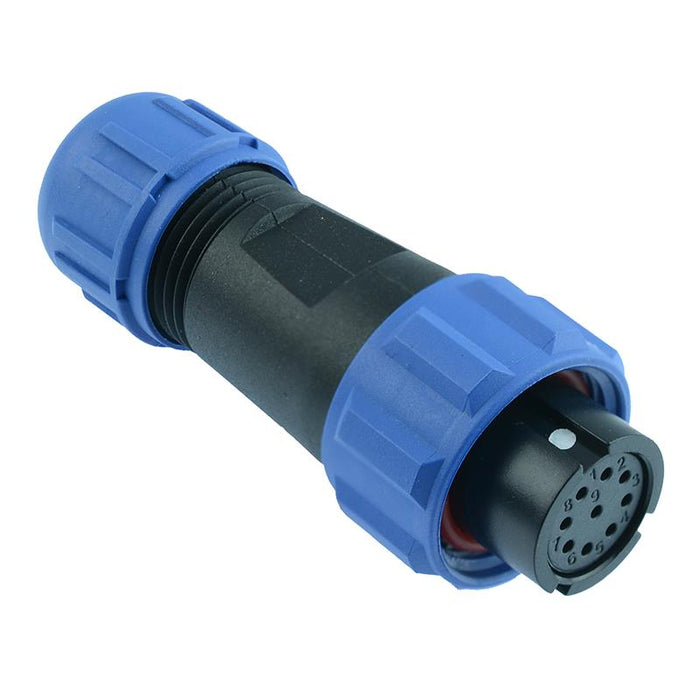

9 Pin Waterproof Female Plug Cable Connector IP68
SKU 482011
MPN: 482011
Availability:
37 in stock
Original price
£3.19
-
Original price
£3.19
Original price
£3.19
£3.19
-
£3.19
Current price
£3.19
9 way female plug featuring IP68 protection rating suitable for applications requiring a waterproof and rugged connector.
Outer cable diameter: 4.5-6mm Protection level: IP68 Rating: 3A 125V Solder termination Rated for 500 mating cycles Dimensions: 48 x 18.8mm (length x diameter)
Specification
| Back Order Lead Time | 30 Days |
| Contact Material | Gold Plated Brass |
| Current Rating | 3A |
| Gender | Female |
| Housing Material | PA66 |
| Mounting Type | Cable Mount |
| Number of Ways | 9 |
| Operating Temperature | -25°C to +80°C |
| Protection Level | IP68 |
| Termination Method | Solder |
| Thread Size | W13 |
| Voltage Rating | 125V |
| Wire Range | 4-6.5mm Diameter |
